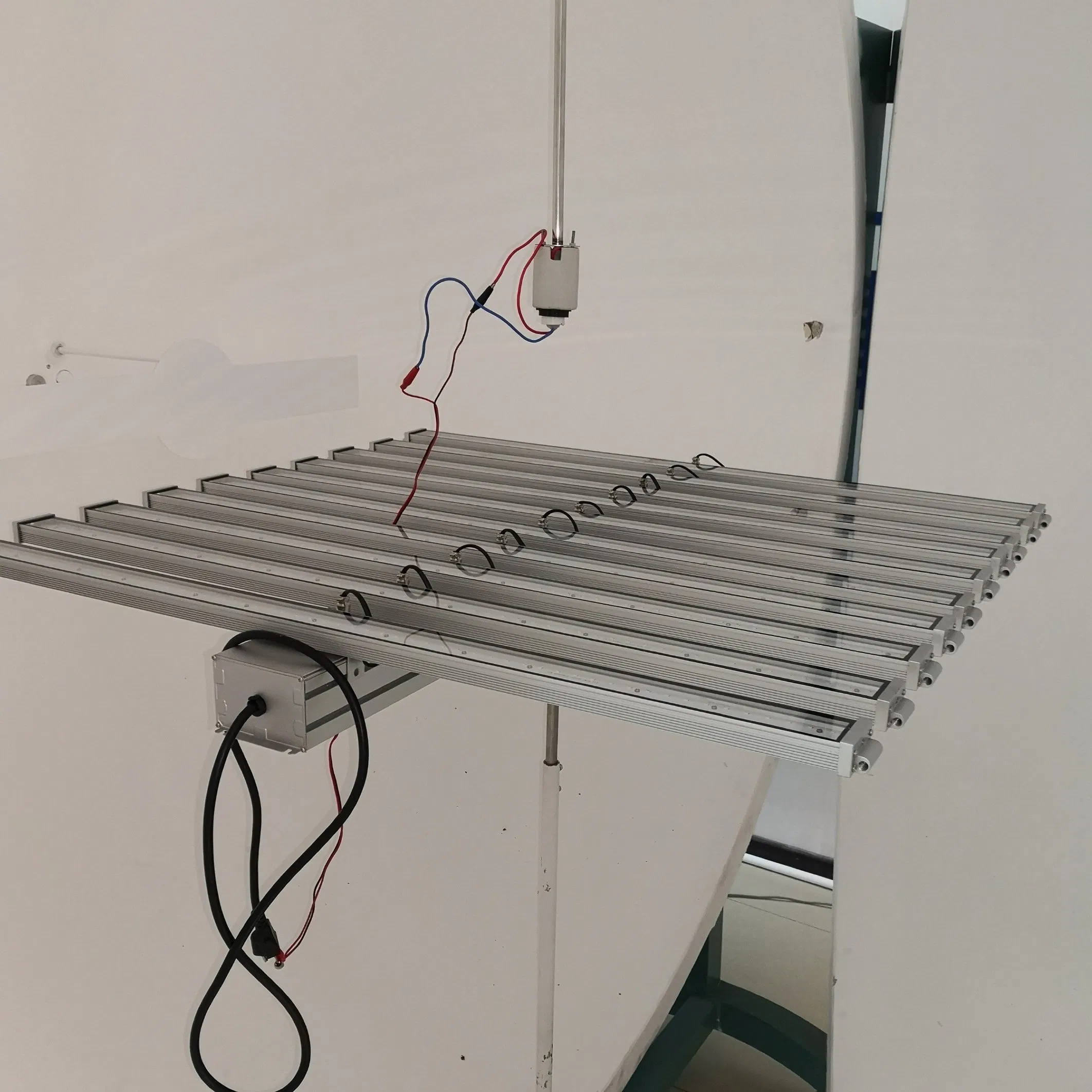

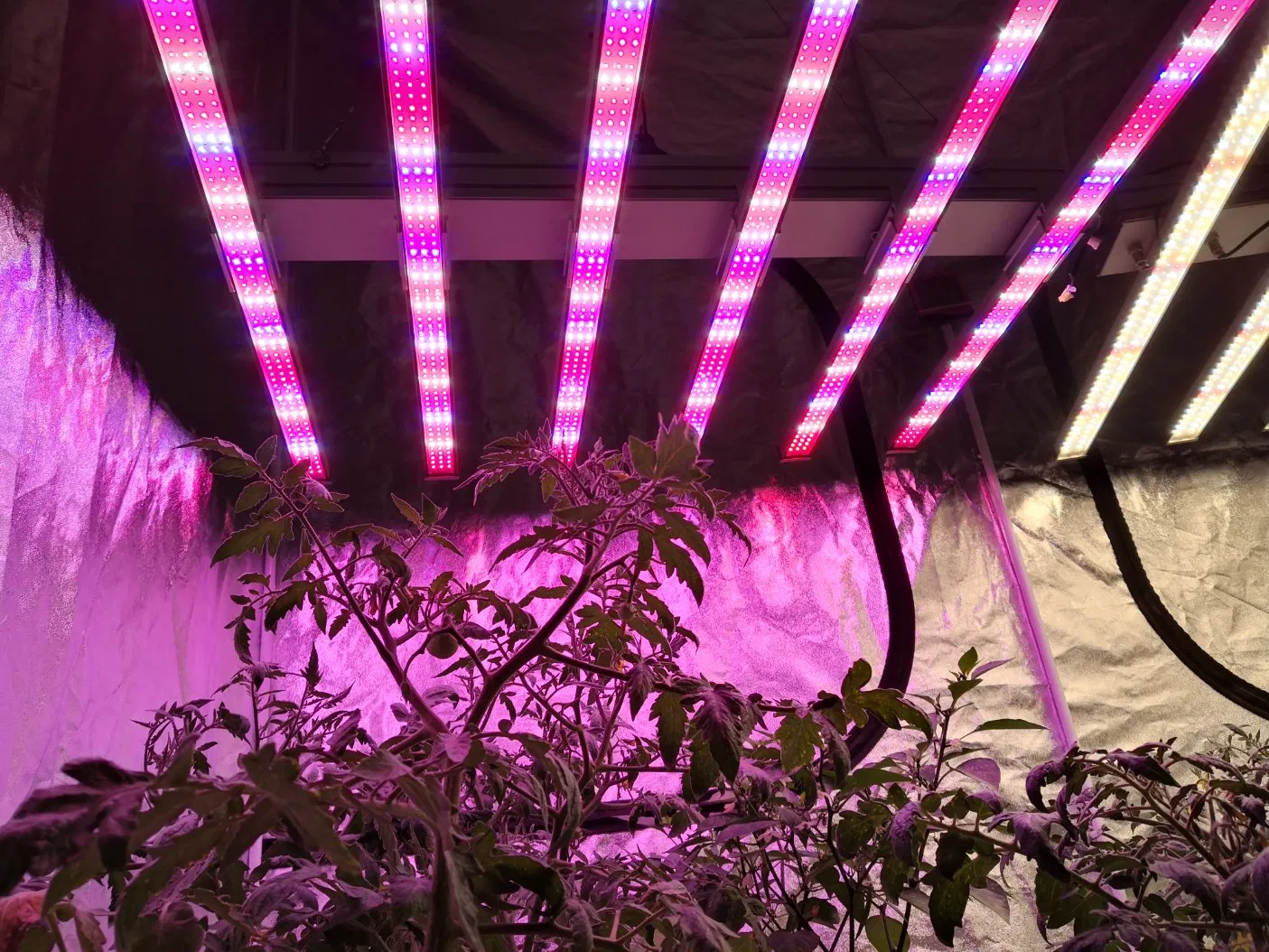

10 Bars Full Spectrum LED Grow Light Fluorescent Tube Fixture 1000W for Vertical Farming

Customization: Available
IP Rating: IP65
Emitting Color: Customized

Product Description

i

Basic Specifications

Model NO.
ATA-1000WB-F
Input Voltage
AC100-277V
Power
1000W
Shape
Bar
Warranty
3 Years
Housing Material
Aluminum
Life
50000h
LED Chips
Epiled
LED Type
3W/LED 3030 LED
Ppf
2727.54umol/S
Efficiency
2.7umol/S

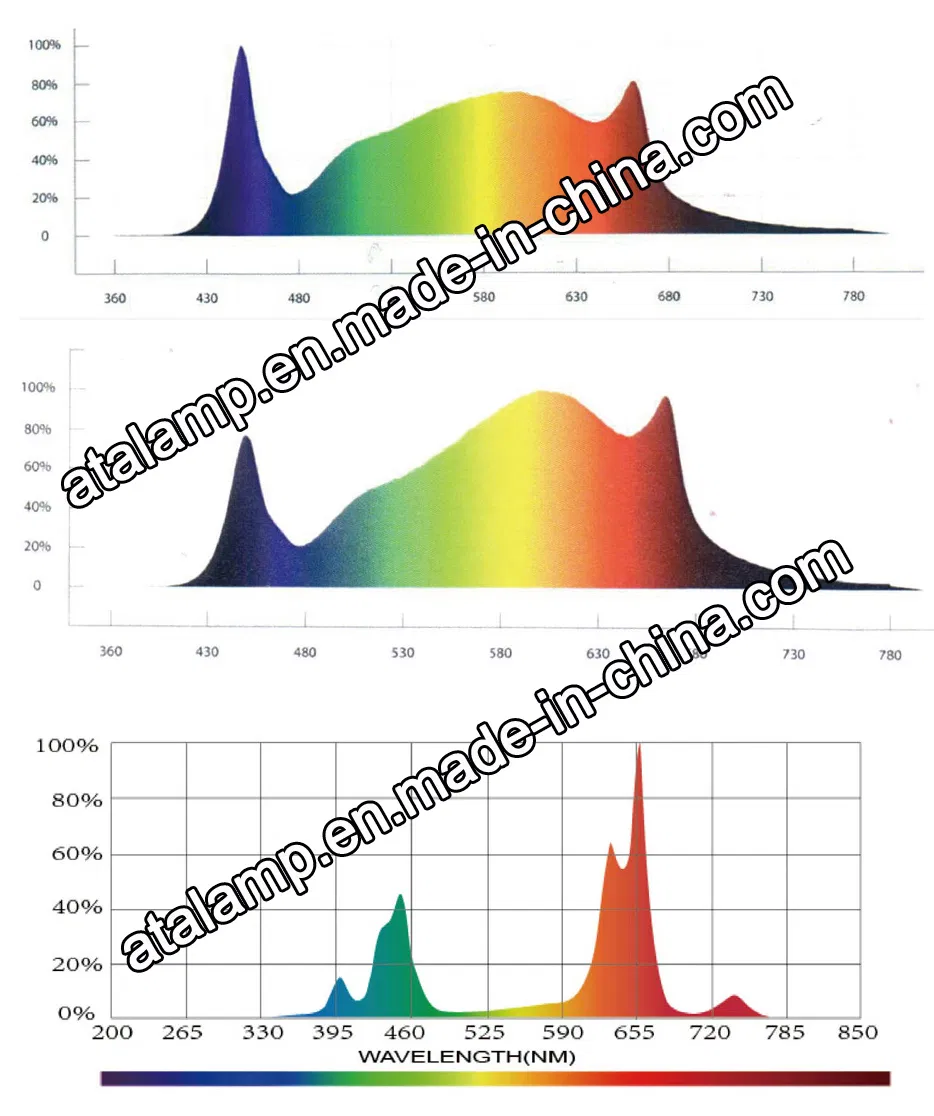

Spectrum
Full Spectrum (Red Blue Ratio)
Cooling
Passive or Water Cooling
Dimensions
1024*1015*115mm

Product Advantages

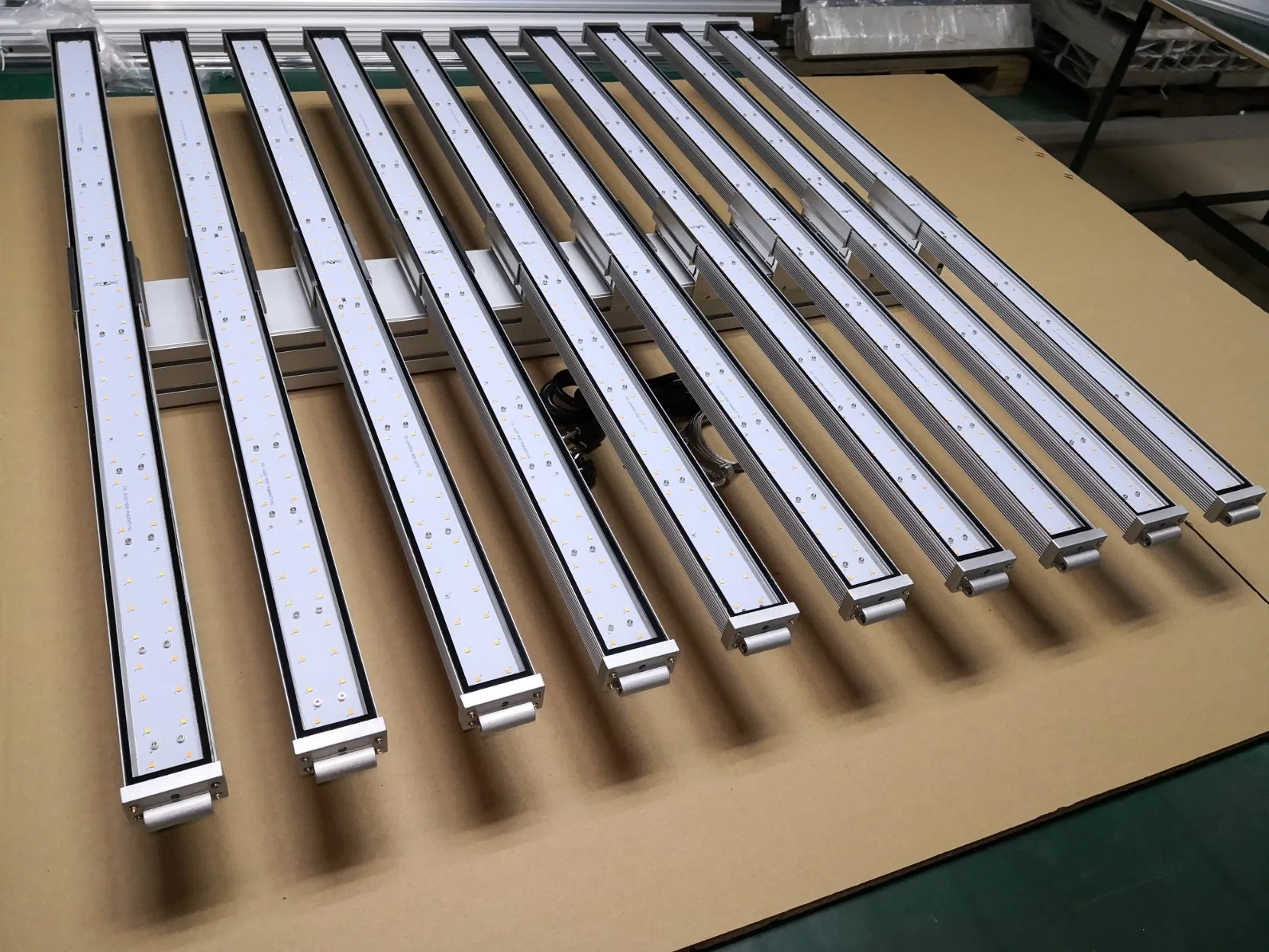

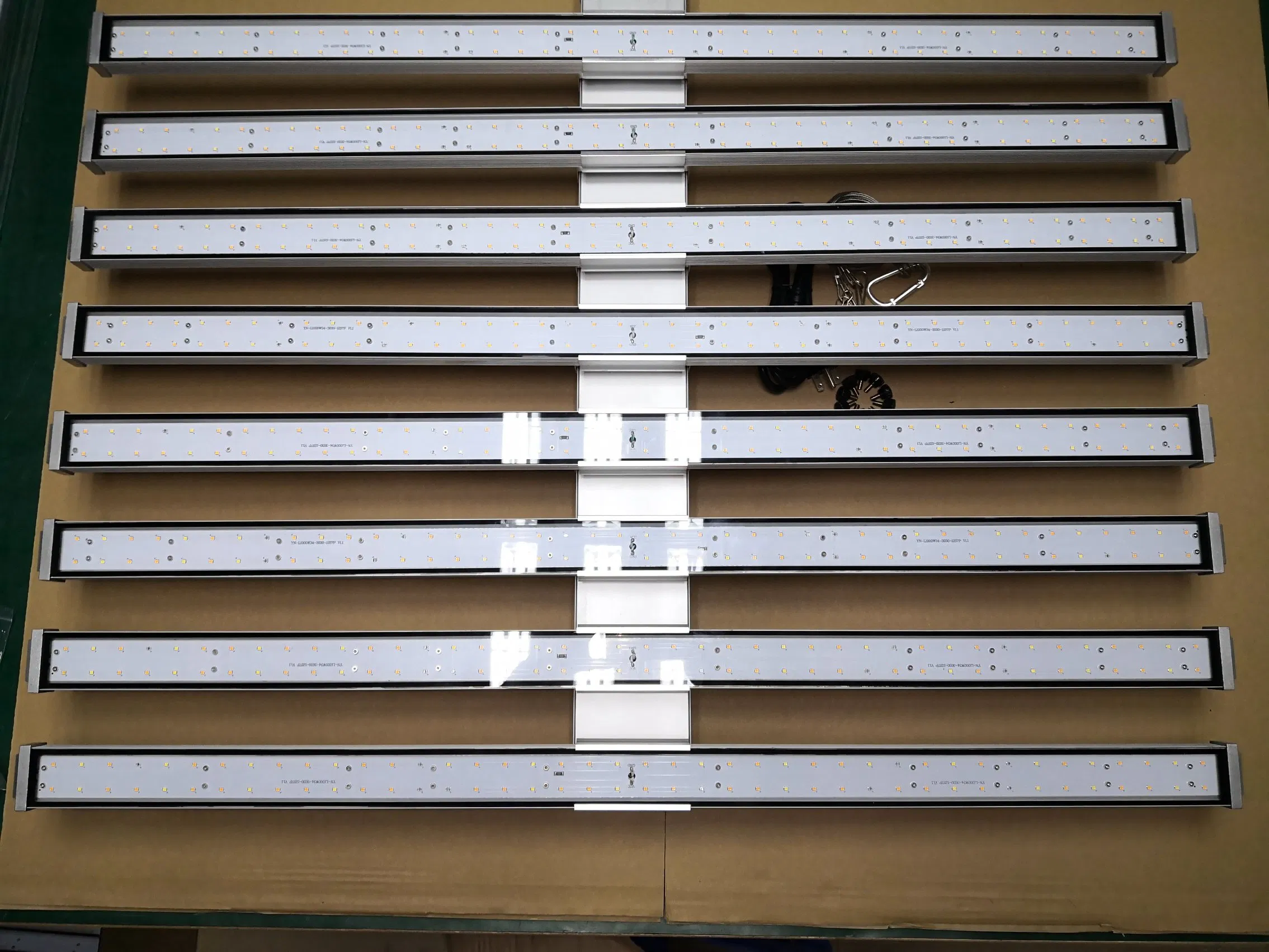

Adjustable LED Plant Grow Bar Light

1. Customizable LED Spectrum: The optimal full spectrum provides plants in Veg and Flower stages with everything they require from natural sunlight.
2. Full Spectrum Design: Promotes growth via universal Blue, Red, IR, UV, and white light. IR/UV LEDs promote defense mechanisms, while blue and red are essential for growth.
3. Adjustable Bar Layout: Customize the distance between LED bars to control lighting intensity and direction. The aluminum structure ensures superior thermal management.
4. Optical Lens Modular: Convenient for assembly and installation with high-efficiency output.
5. Energy Efficiency: Outperforms traditional HPS/MH systems. A 600W LED grow light can replace a 400W HPS while consuming significantly less power, covering 6 square meters at 1m height.

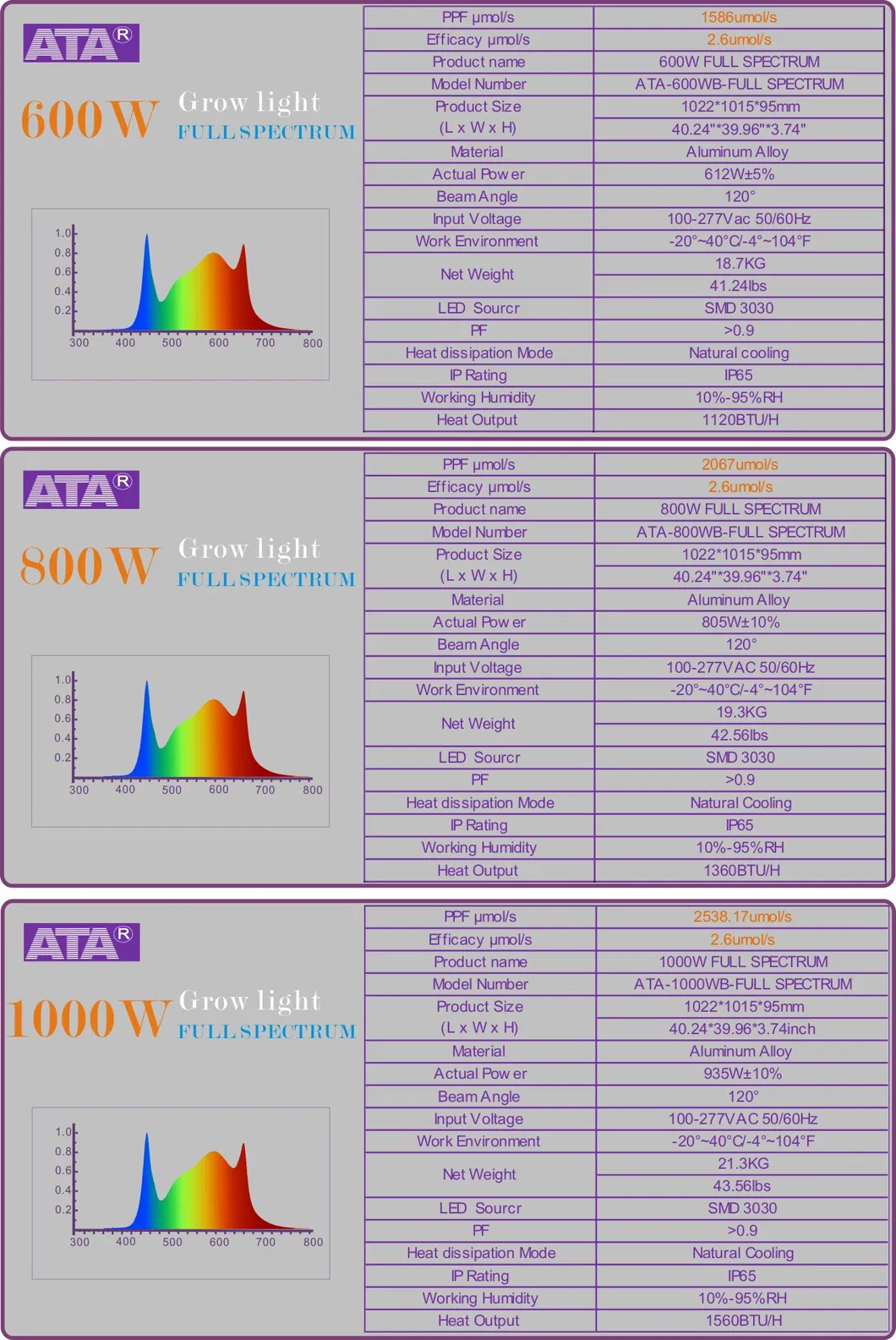

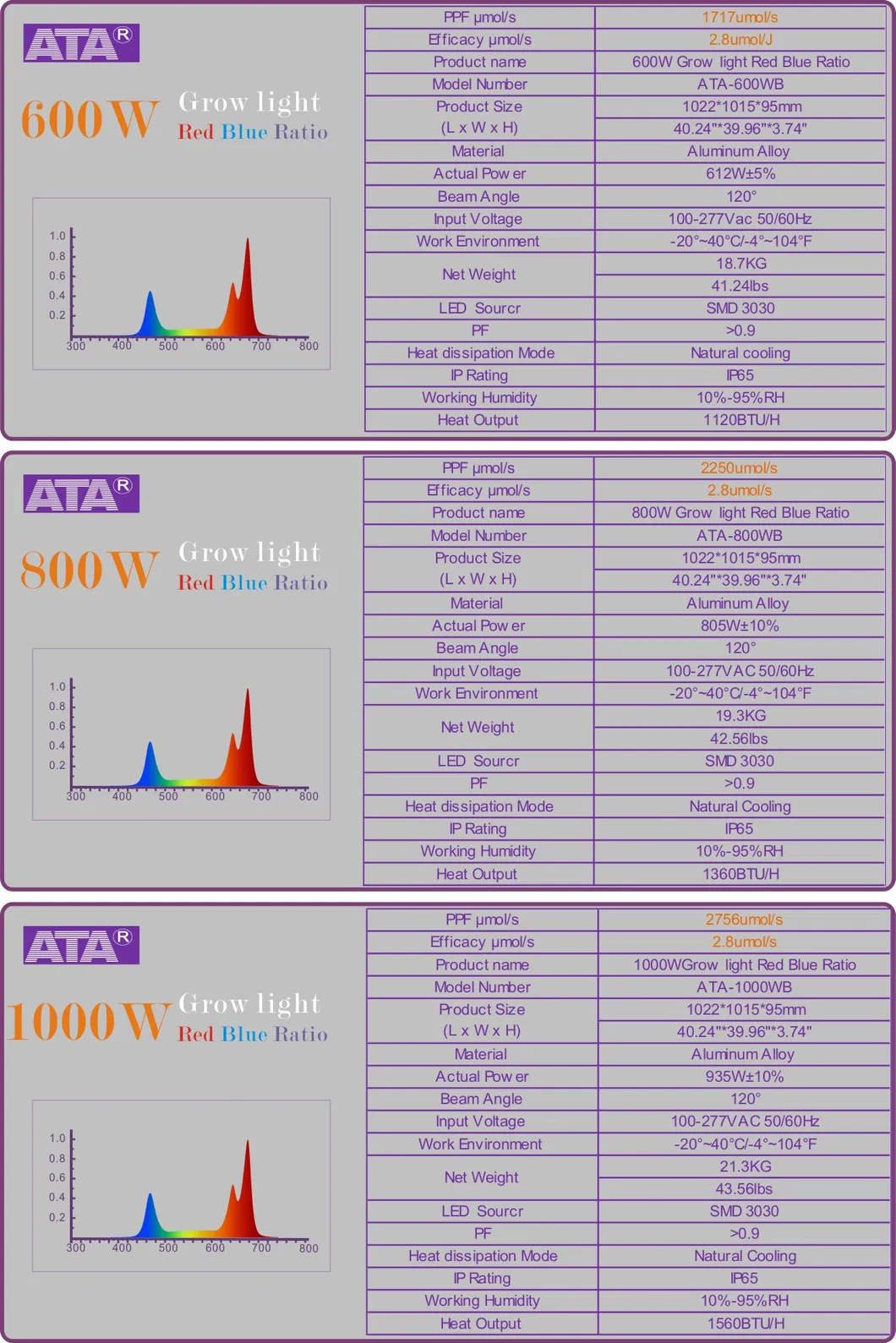

Technical Specifications

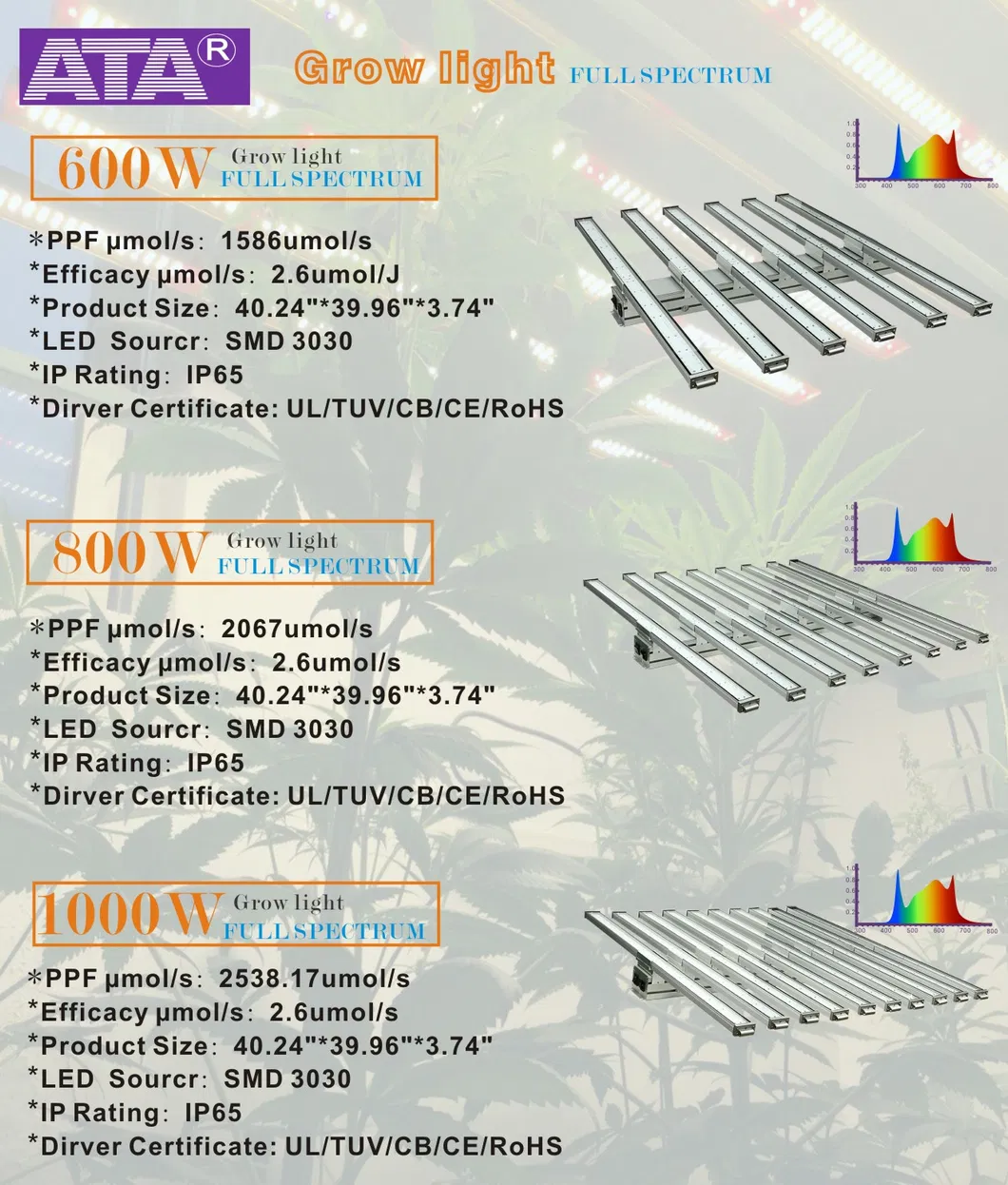

Product Name 600W Top Module 600W Top Module (Lens) 600W Full Spectrum
Model ATA-M600W ATA-M600W-LENS ATA-M600W-FULL SPECTRUM
Product Size 1022*1015*95mm 1022*1015*95mm 1022*1015*95mm
Power Consumption 545W±5% 545W±5% 545W±5%
LED Type 3W /LED 3030 3W /LED 3030 1W /LED 5730
Beam Angle 120° 90° 120°
IP Rating IP65 IP65 IP65
PPF (µmol/s) 1586 1586 1586
📊

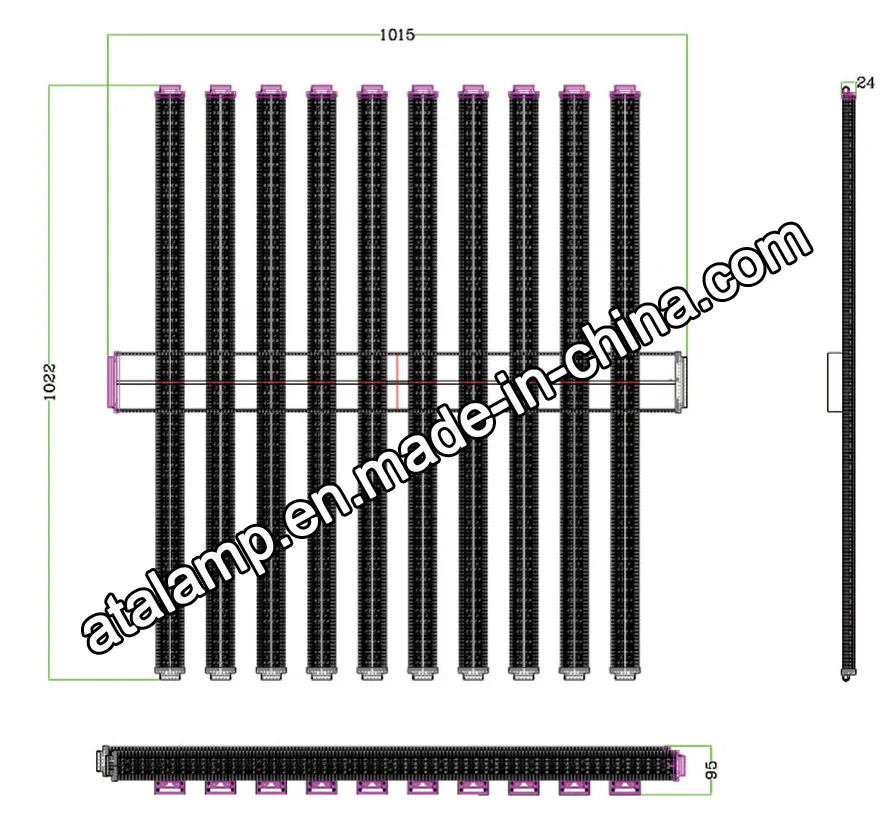

Performance & Dimensions

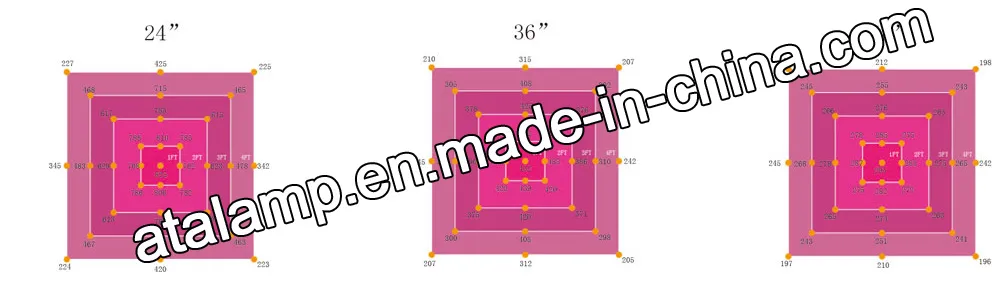

PPFD Data:

PPFD Chart

Application & Safety

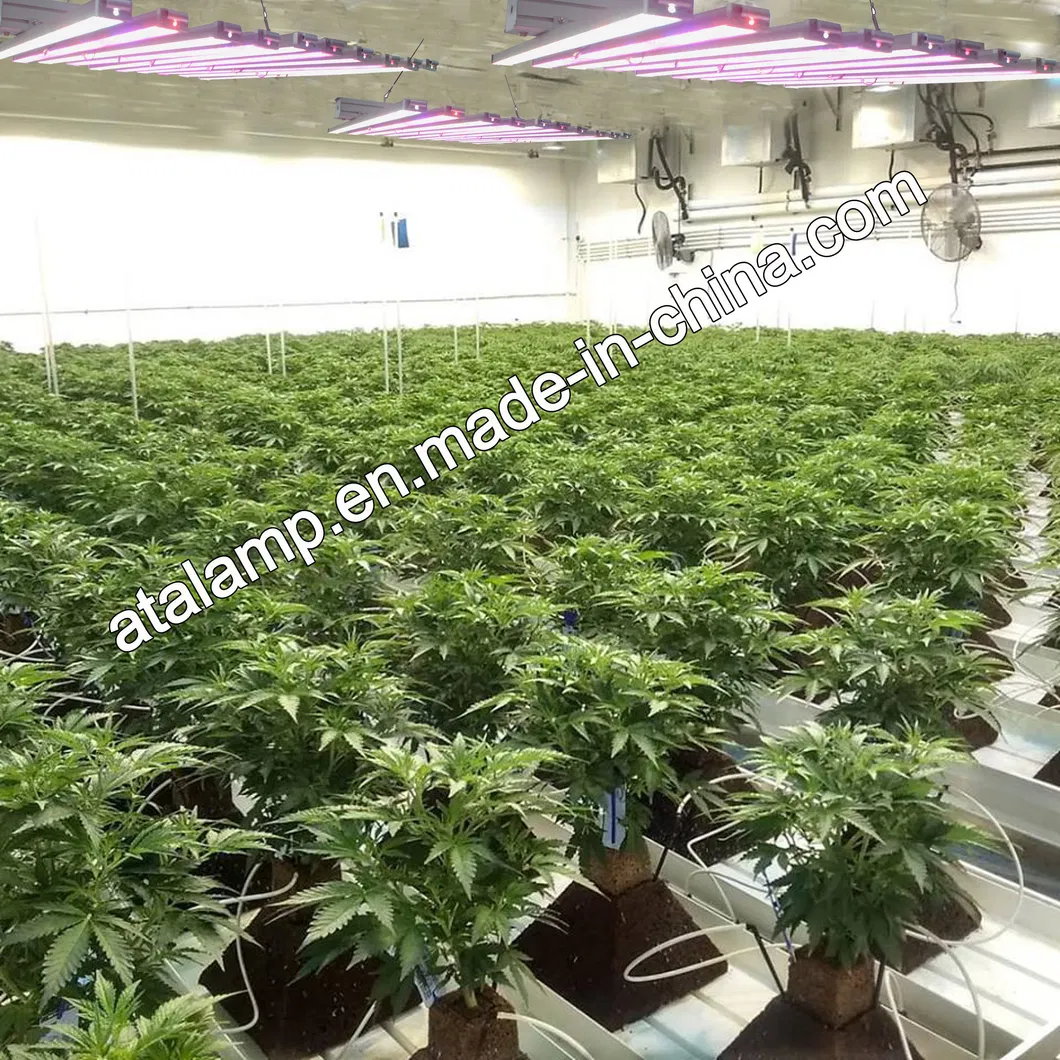

Installation: Suspending

Installation

Application: Suitable for Fruit, Vegetables, Flowers, Medical plants, Greenhouse, Vertical Farming, and indoor gardens.

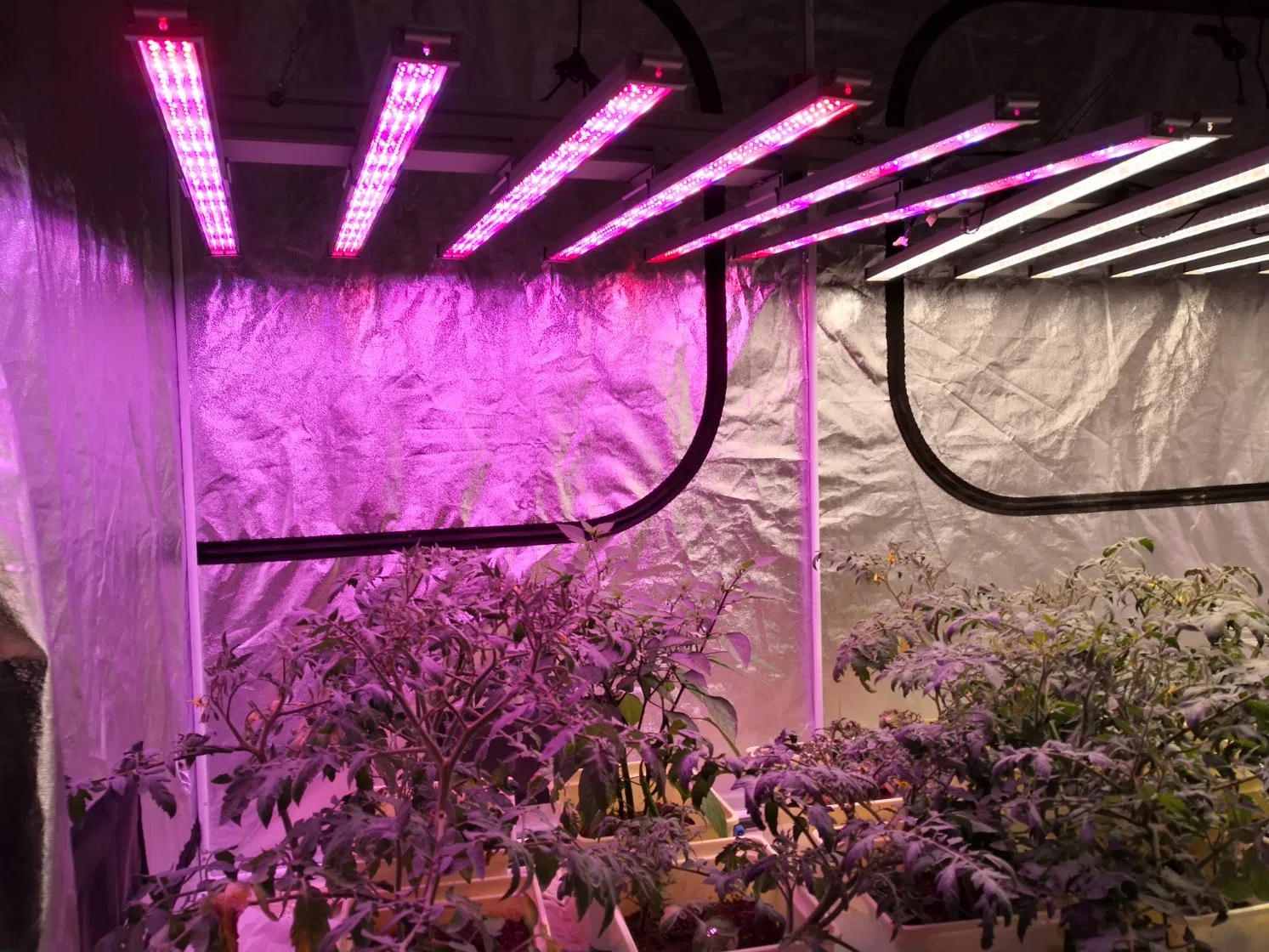

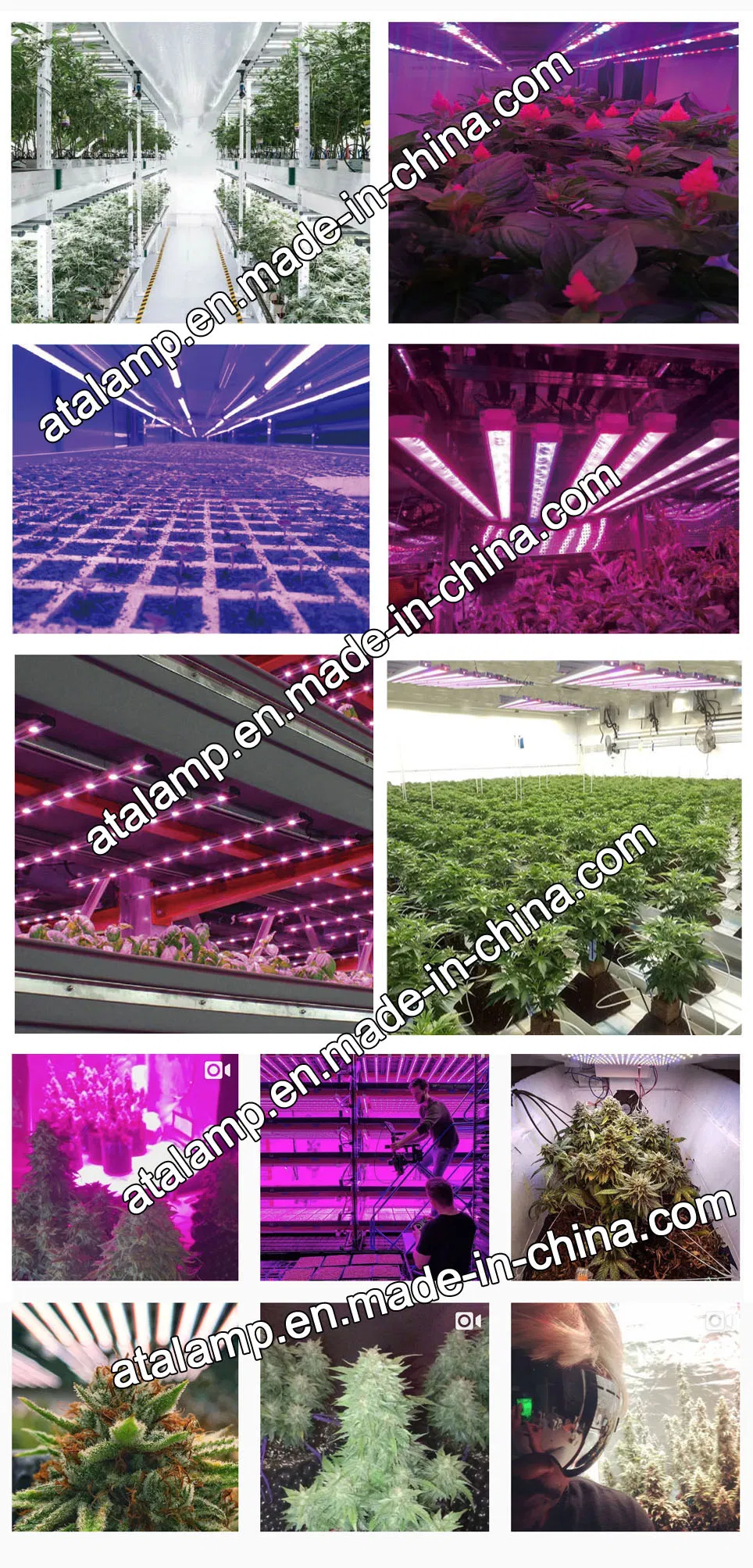

Application Gallery
Quality Control Standards:
  • Stability TEST: 48-hour aging test for 100% of lamps.
  • Lighting TEST: 100% verification before packing.
  • Drop TEST: Ensuring maximum protection during transport.

Frequently Asked Questions

What are the benefits of the Full Spectrum design?
It includes Blue, Red, IR, and UV light which promotes plant defense mechanisms and provides everything required for all growth stages, from seedling to flowering.
How does the 1000W LED compare to traditional HPS lighting?
LED grow lights are significantly more energy-efficient, providing higher PPF while consuming less electricity and generating less heat than traditional HPS/MH systems.
Is the spectrum customizable?
Yes, we can customize the LED spectrum based on specific plant varieties and growth requirements.
What is the lifespan and warranty?
The product has a rated life of 50,000 hours and comes with a 3-year warranty for peace of mind.
Can these lights be used in high-humidity environments?
Yes, these units are rated IP65 and can operate in working humidity ranging from 10% to 95% RH.
What cooling methods are used?
The system utilizes high-quality aluminum bar structures for passive cooling (natural convection) or can be adapted for water cooling systems.
