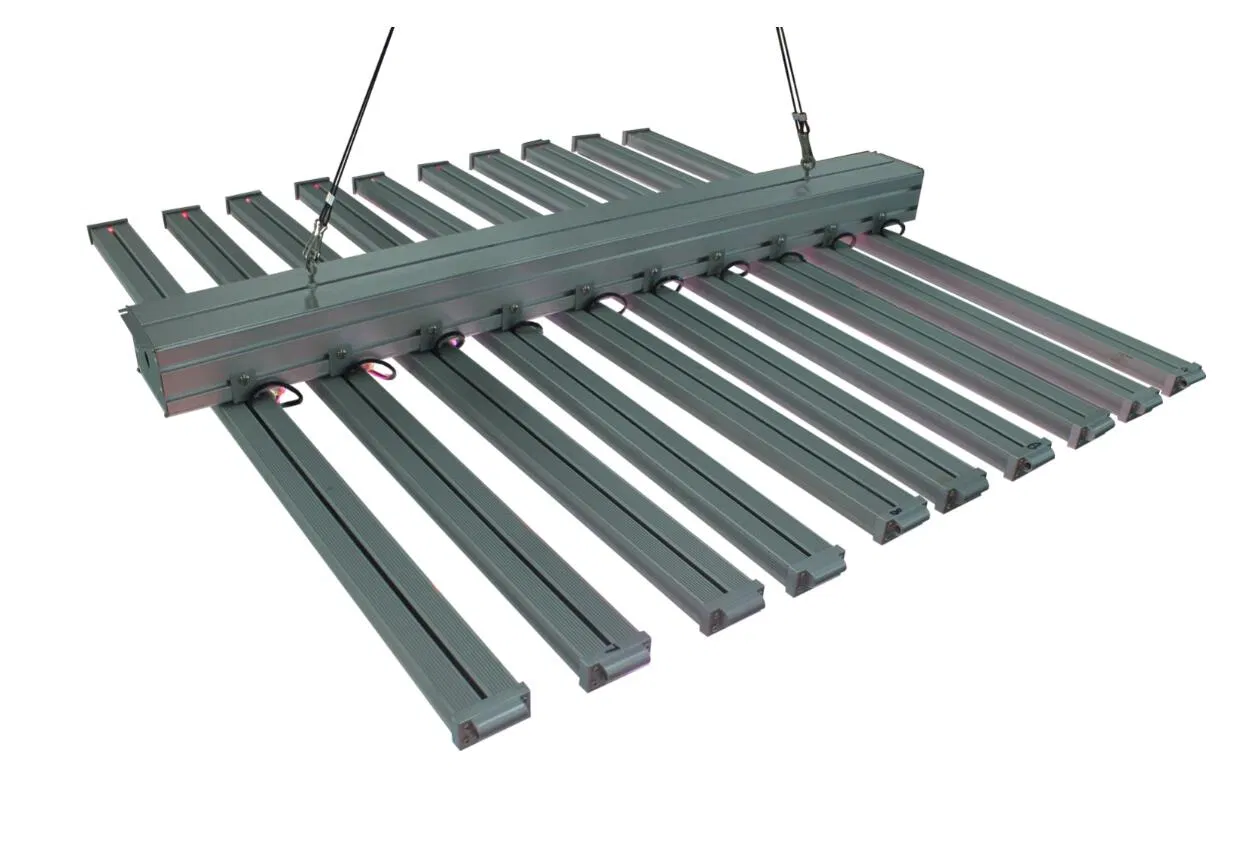

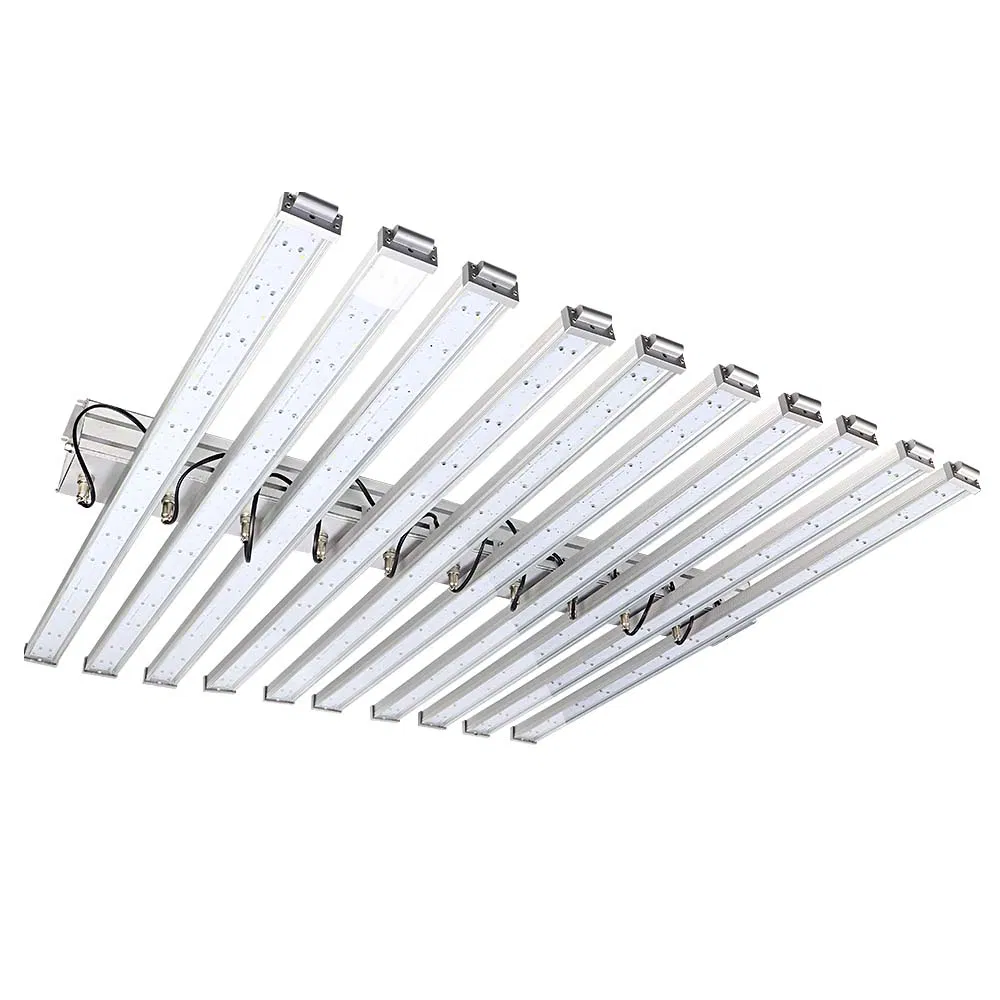

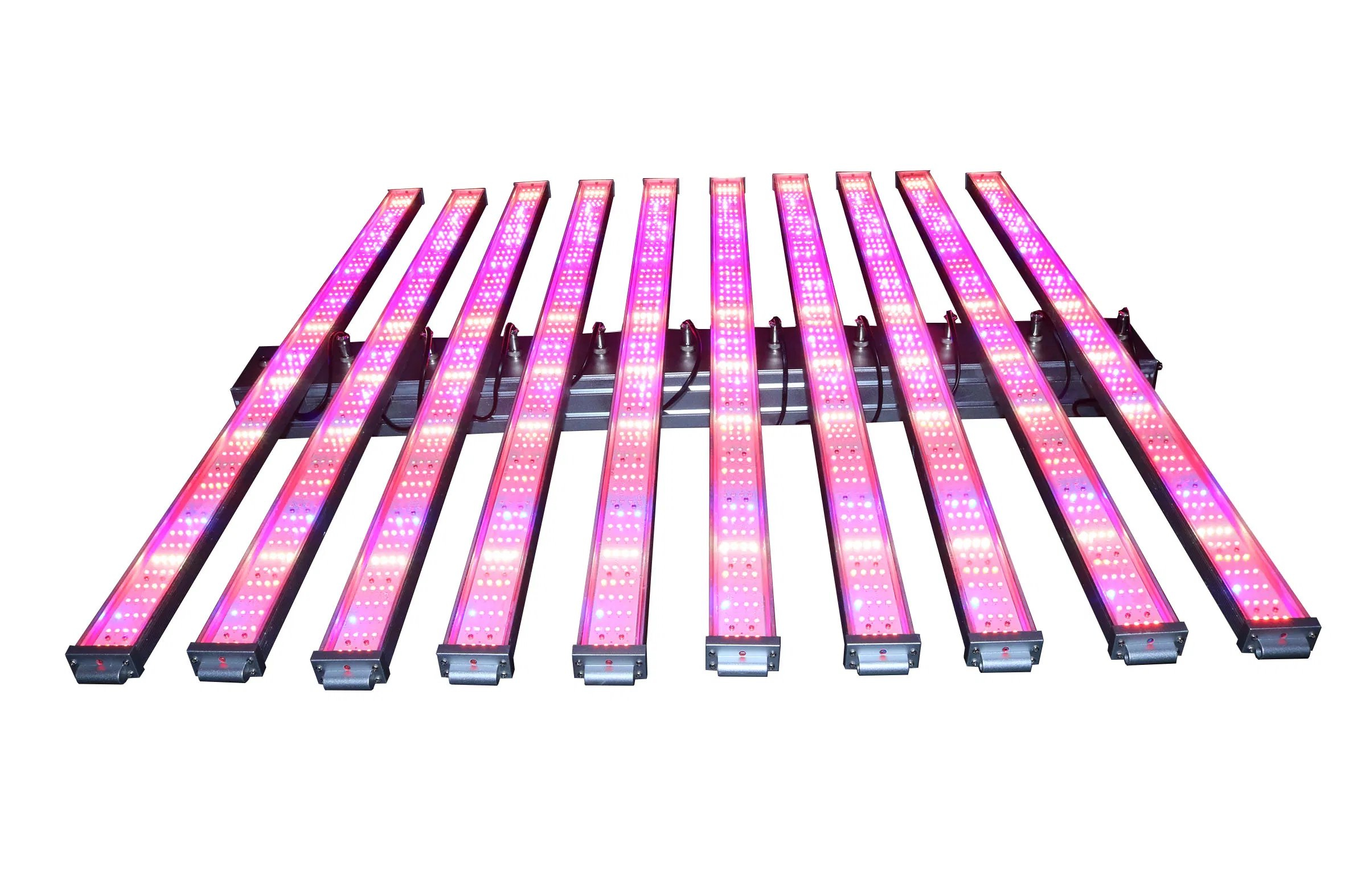

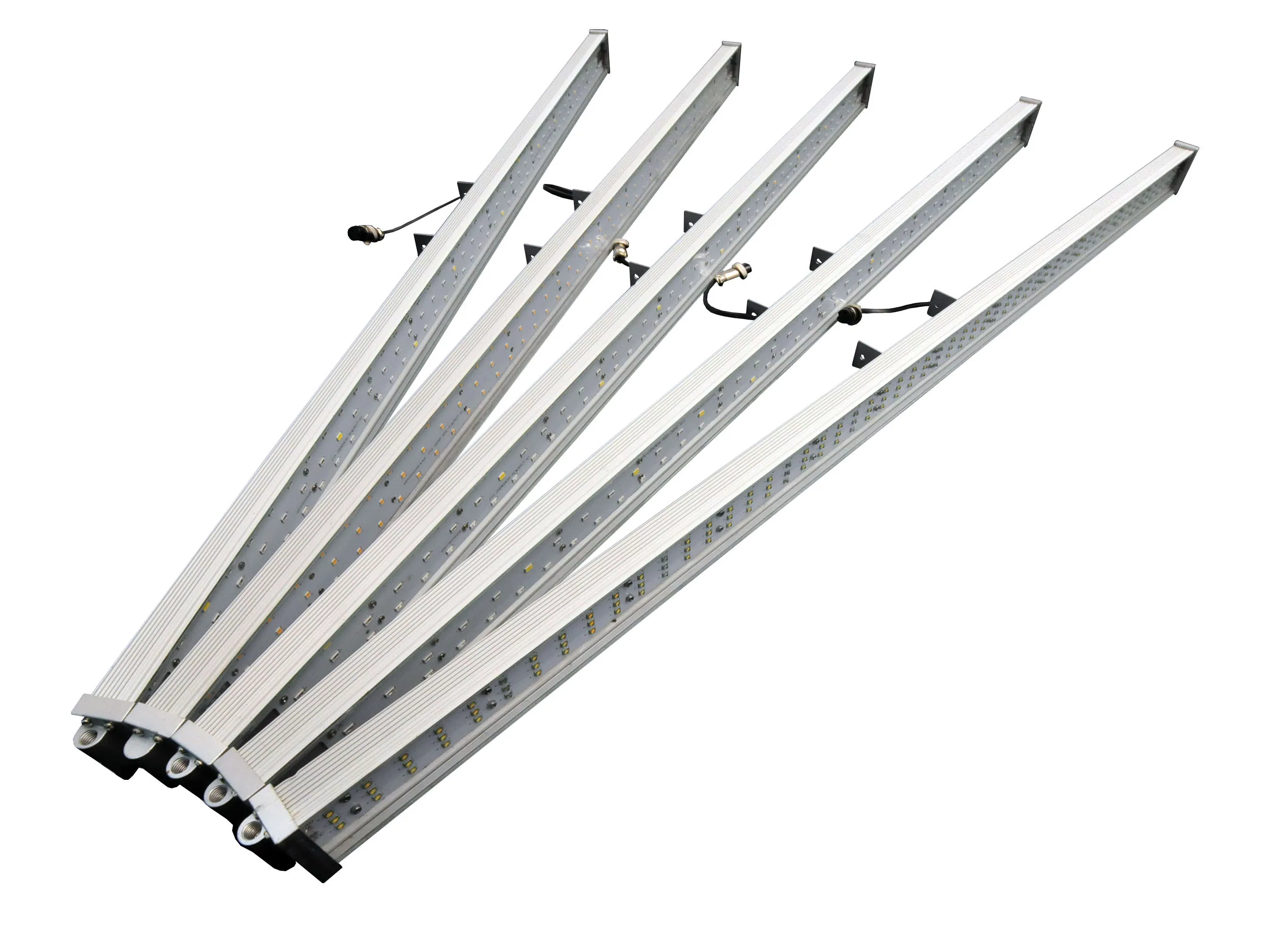

Dlc ETL Lised Spider Bar Type High Ppf 600W/800W/1000W Indoor Medical Plant LED Grow Light

Customization: Available
IP Rating: IP65
Emitting Color: Customized

Product Description

Basic Specifications

Model NO.
ATA-1000WB
Input Voltage
AC100-277V
Power
1000W
Warranty
3 Years
Life
50000h
LED Chips
Epiled
LED Type
3W/LED 3030 LED
PPF
1586umol/S
Efficiency
2.4umol/S
Cooling Methods
Passive or Water Cooling
IP Rating
IP65
Spectrum
Full Spectrum

Product Description

Adjustable LED Plant Grow Bar Light

Customizable LED Spectrum: The optimal full spectrum provides plants at Veg and Flower stages with everything they require from natural sunlight.
Scientific Design: Includes universal Blue, Red, IR, UV, and White light. Expensive IR UV LEDs promote plant defense mechanisms, while blue and red LEDs are essential for growth.
Thermal Management: Aluminum bar structure facilitates excellent heat dissipation and air convection, ensuring a long life time.
Versatile Replacement: The 600W LED grow light can replace traditional 400 watt HPS/MH while consuming significantly less power, perfect for 6 square meters at 1m height.

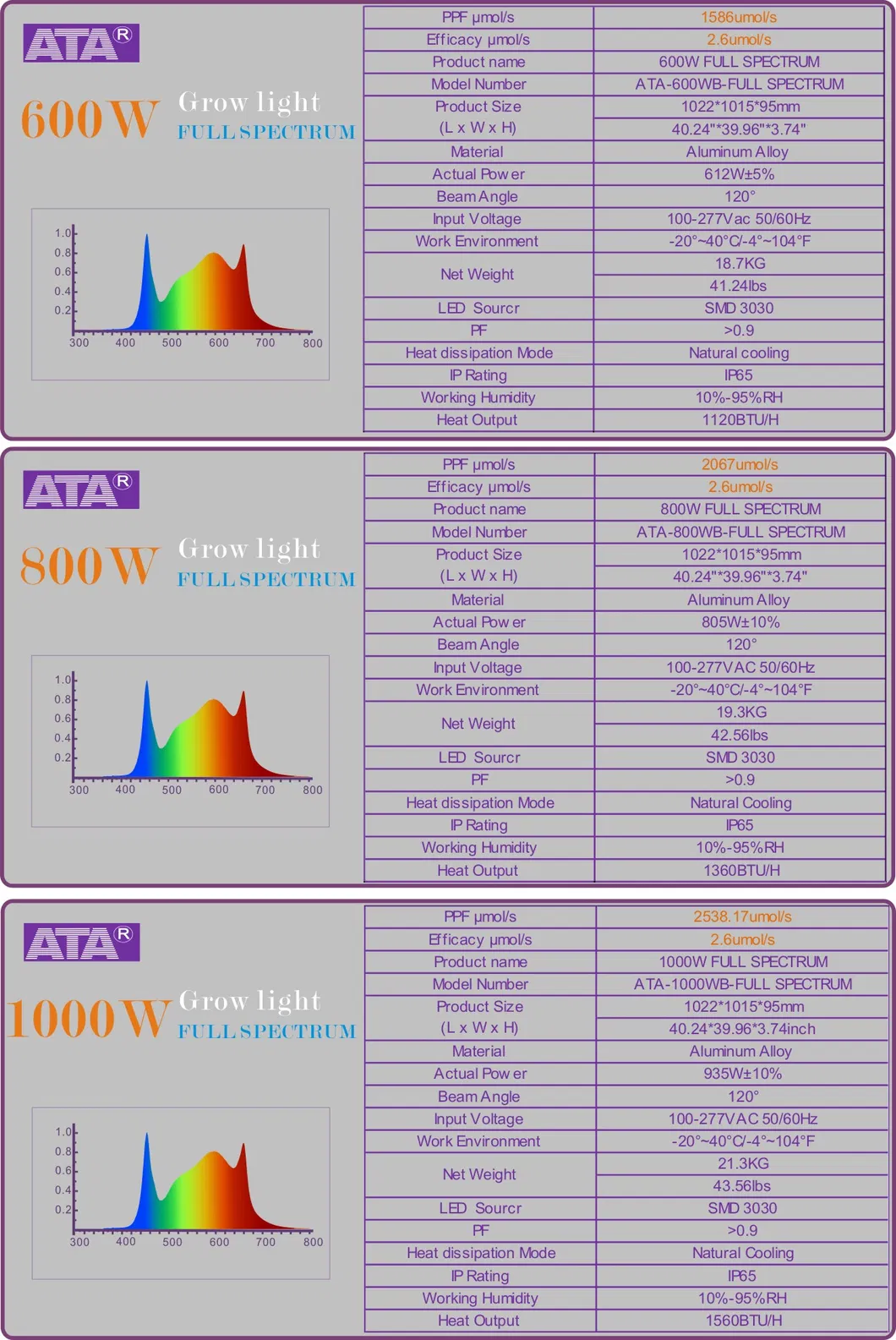

LED Grow Light Bar

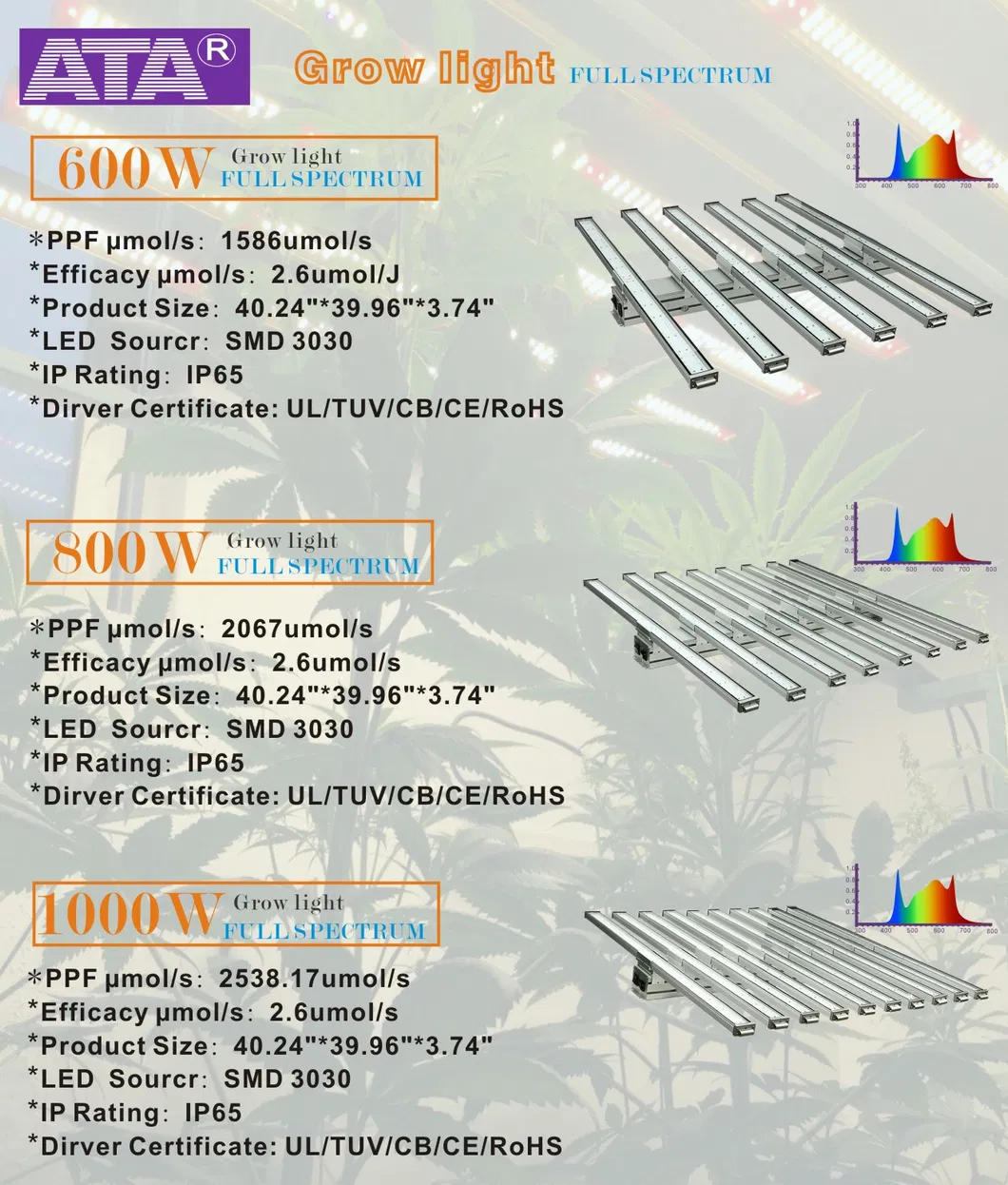

Indoor Medical Plant LED

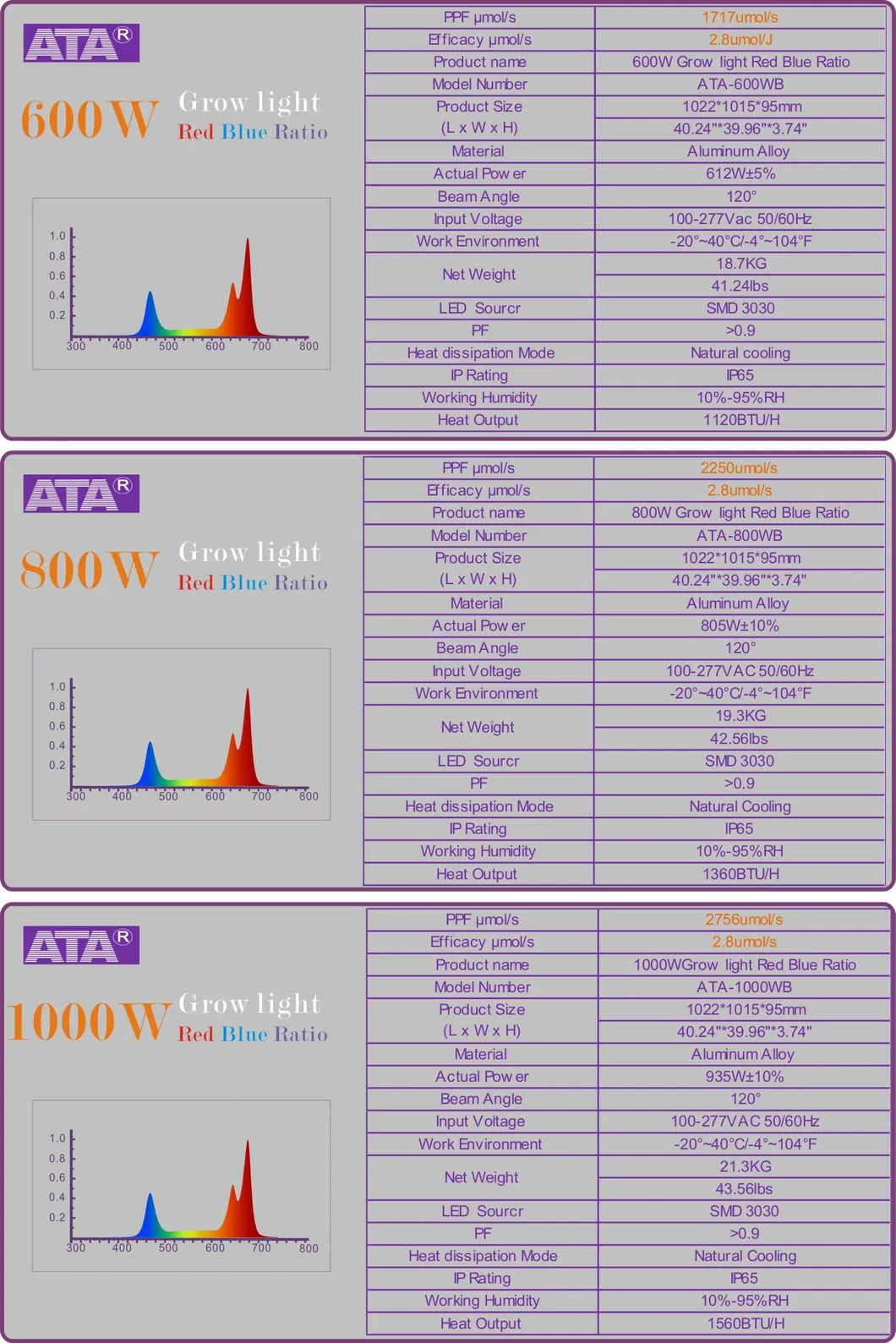

High Ppf Grow Light

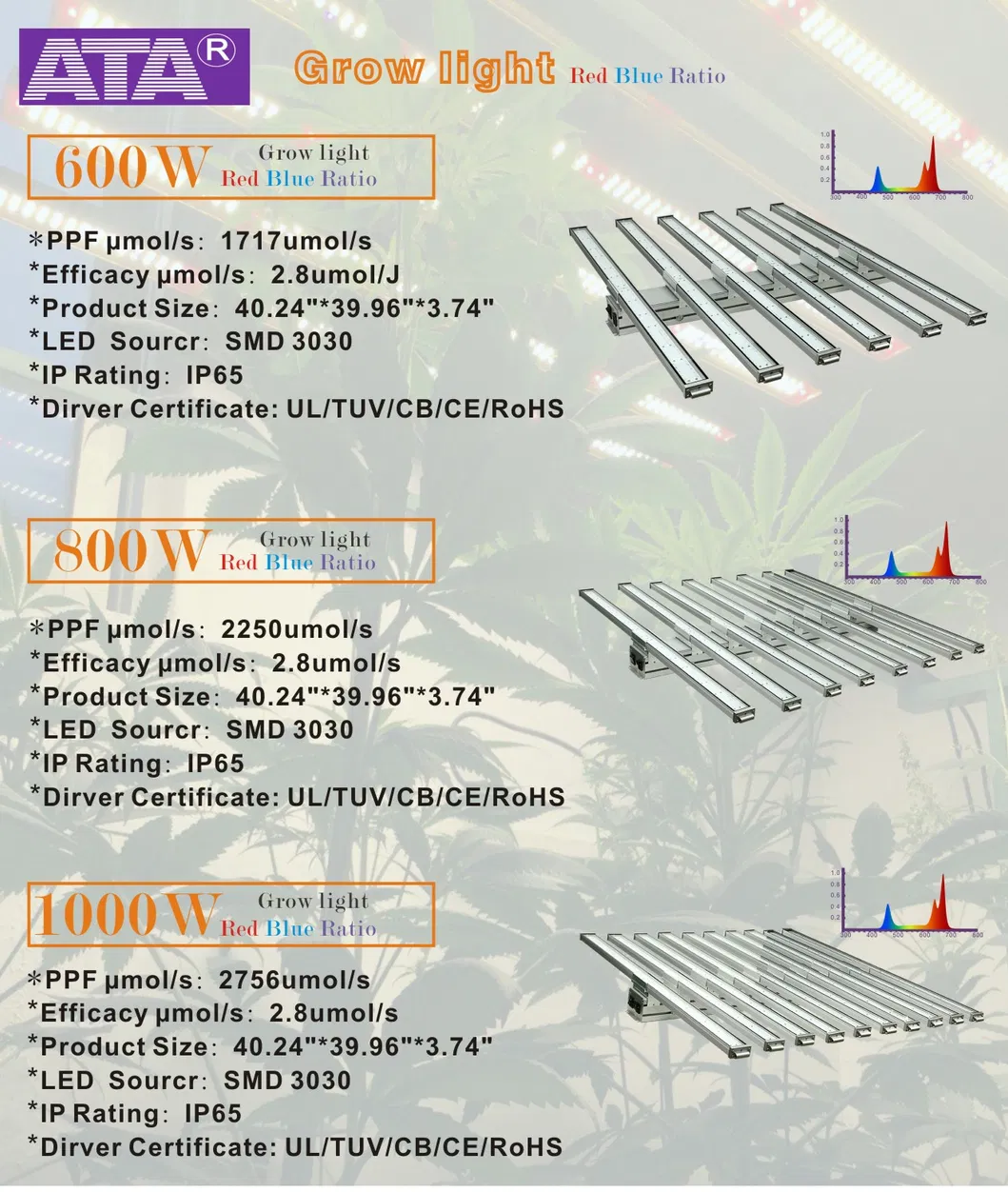

Spider Bar Type LED

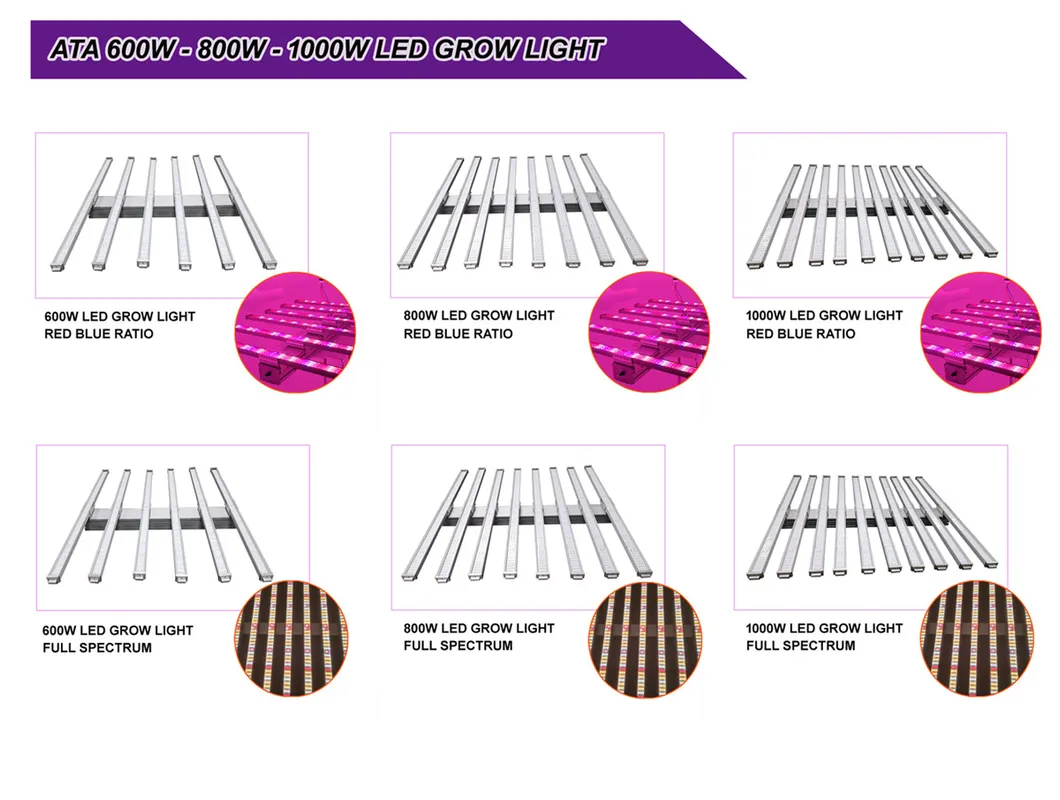

Detail View 1

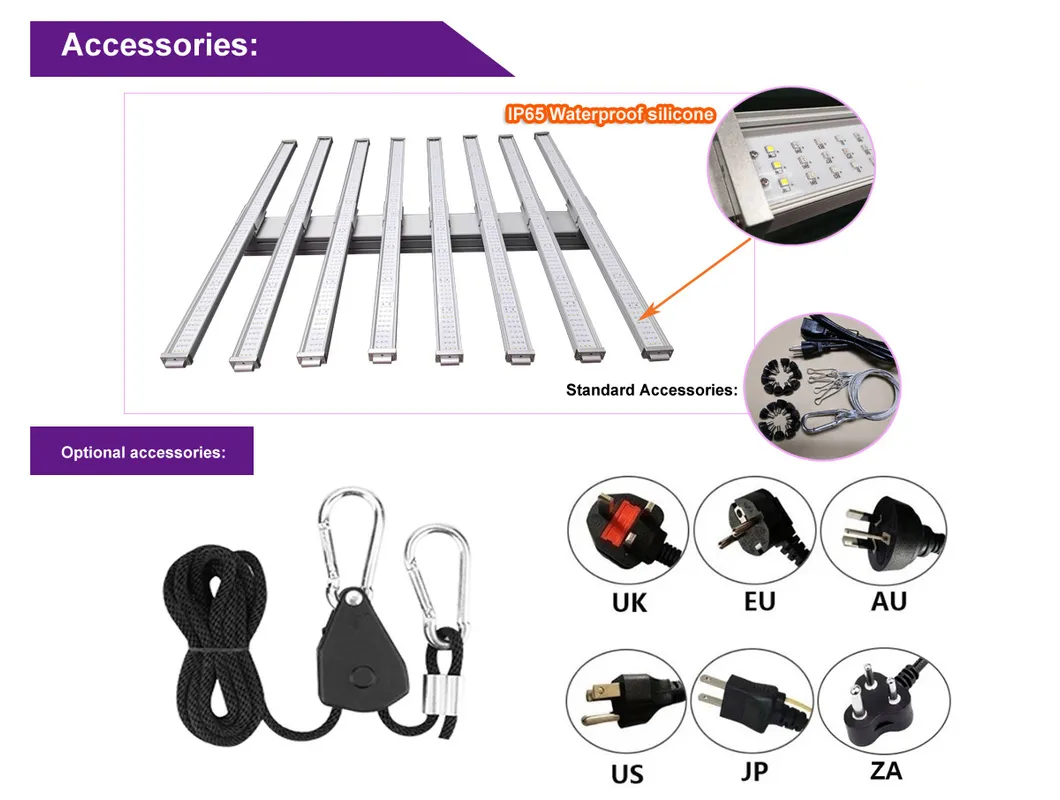

Detail View 2

Technical Specifications

Specifications ATA-M600W ATA-M600W-LENS ATA-M600W-FULL SPECTRUM
Size (L x W x H)1022*1015*95mm1022*1015*95mm1022*1015*95mm
MaterialAluminum AlloyAluminum AlloyAluminum Alloy
Led Quantity130PCS*10*3=3900W130PCS*10*3-3900W130PCS*10=1300W
Beam Angle120°90°120°
Input Voltage100-277Vac100-277Vac100-277Vac
IP RatingIP65IP65IP65
PPF (µmol/s)1586umol/s1586umol/s1586umol/s

Optical Performance

PPFD Data:

PPFD Data

Spectrum Analysis:

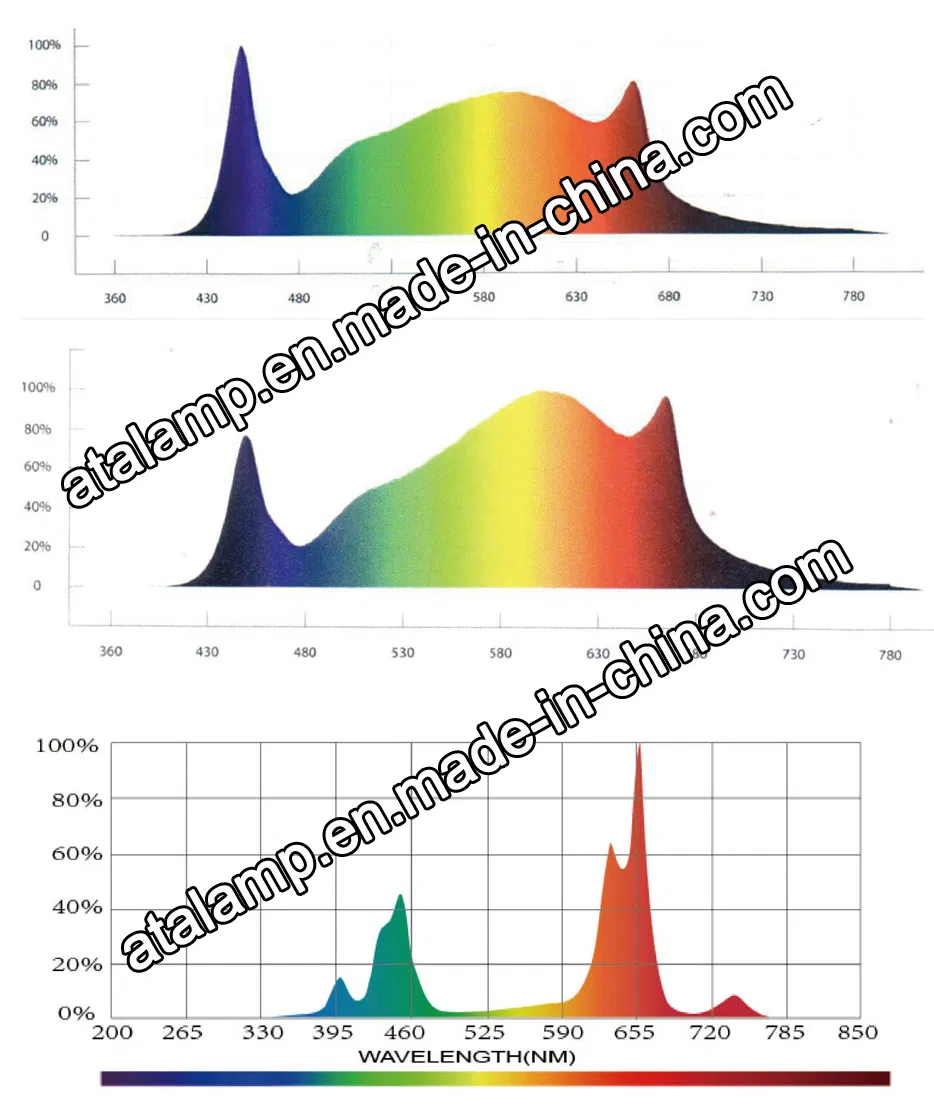

Spectrum Chart

Dimensions & Installation:

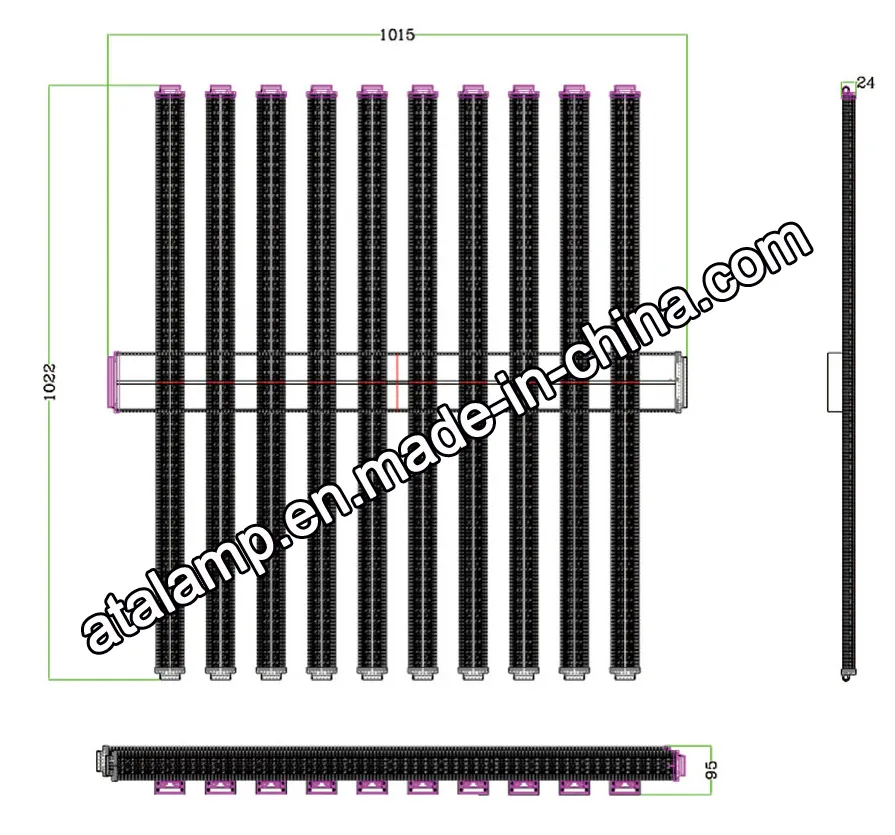

Product Dimension

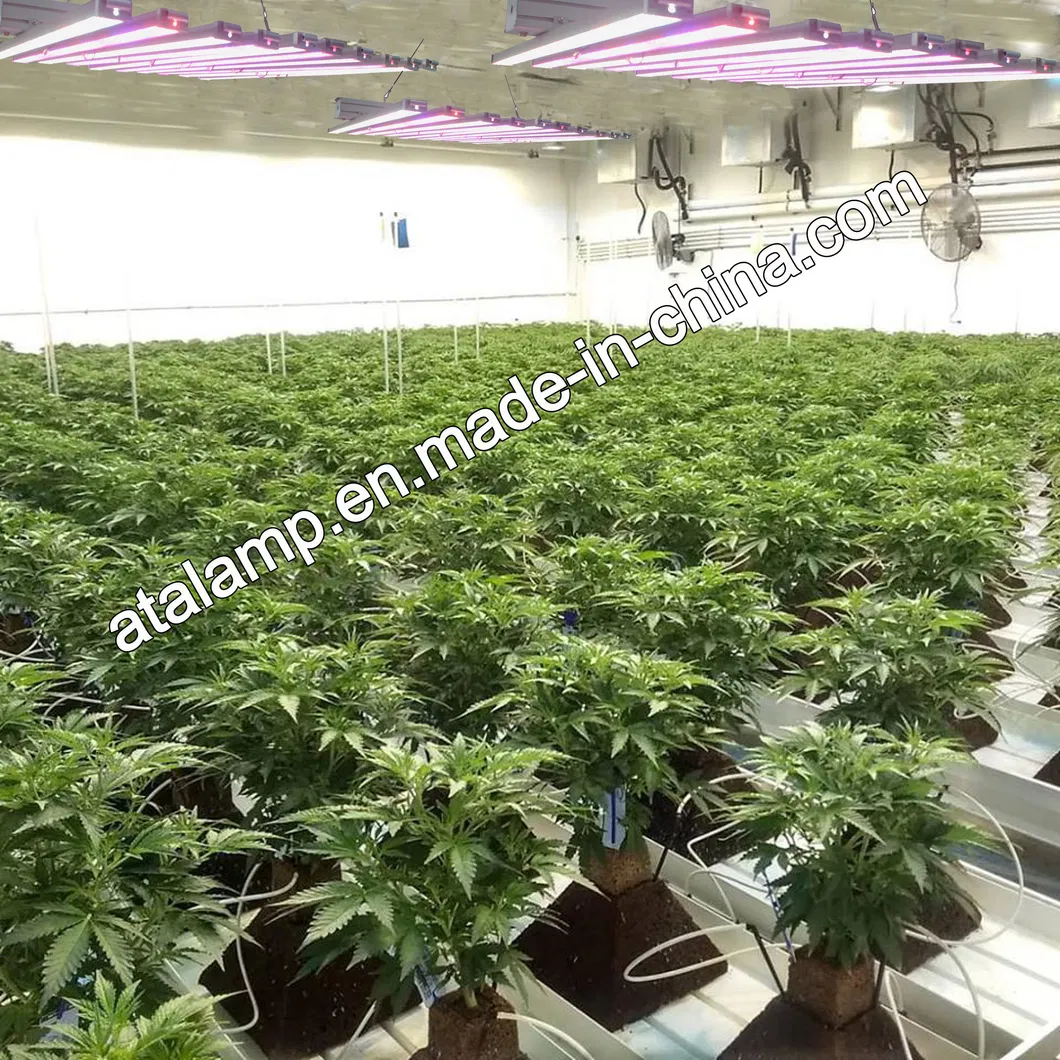

Suspending Installation

Applications

Suitable for Fruit, Vegetables, Flowers, Special Crops, Leafy Greens, Seedlings, propagation, greenhouse cultivation, medical plants, indoor gardens, and pot plants.

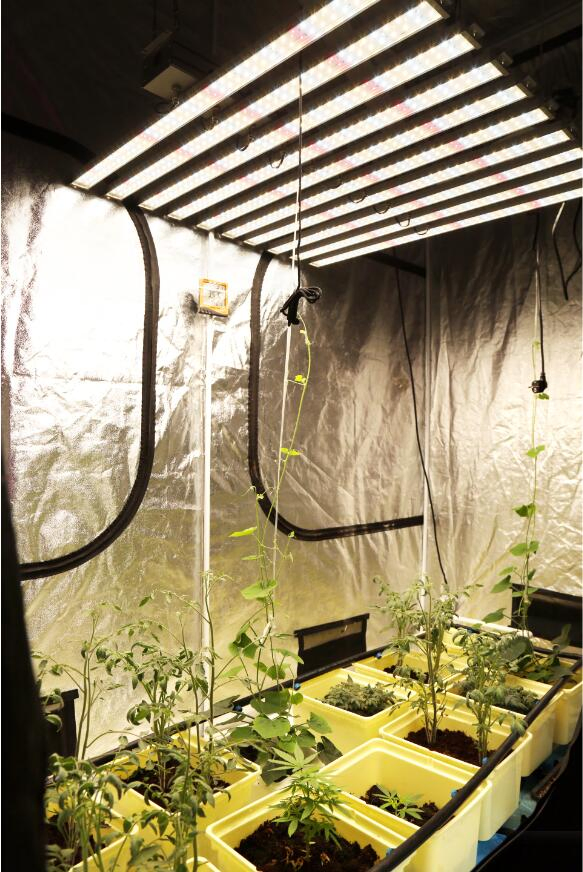

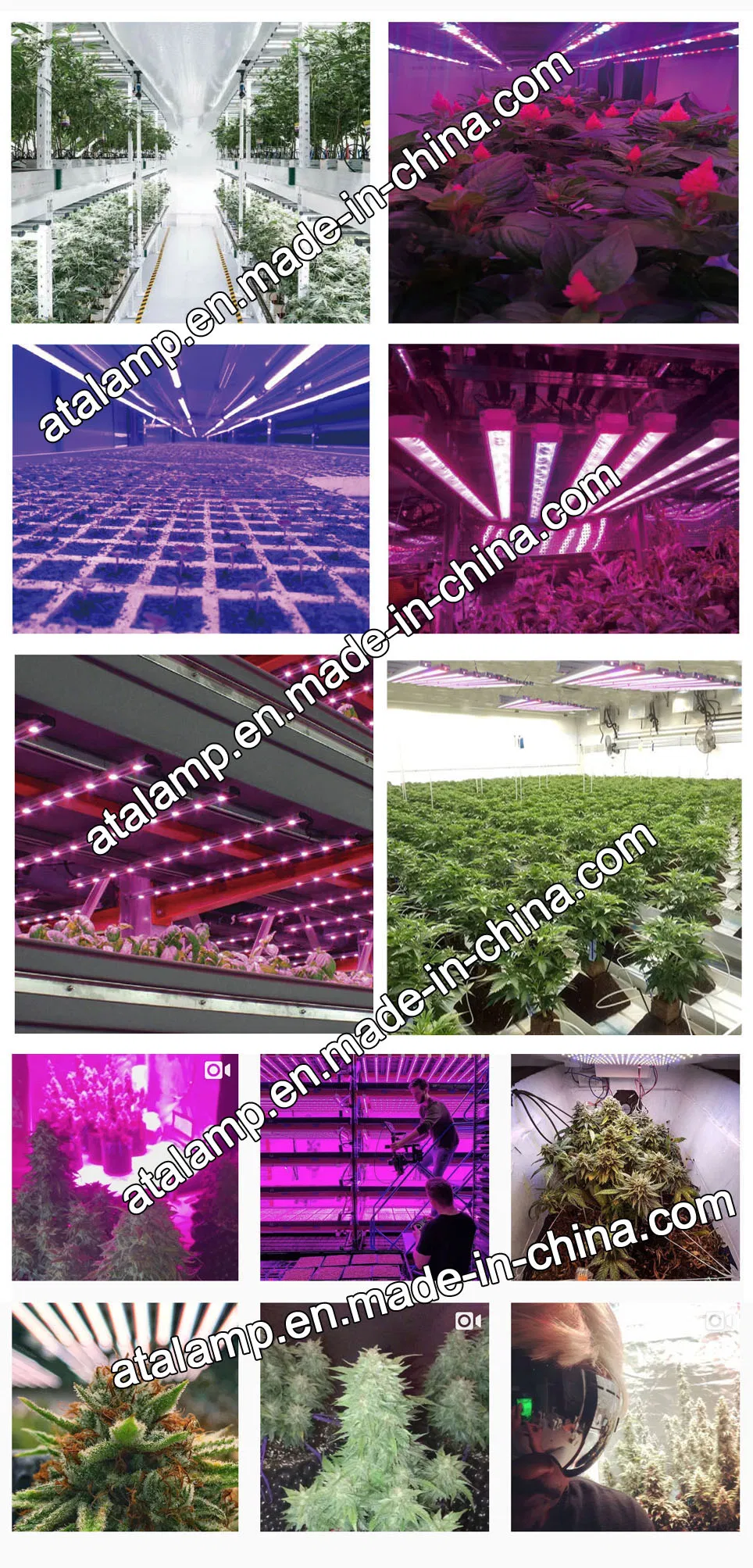

Grow Light Application

Safety & Quality

User Guidelines:

  • Switch off power supply before any work.
  • Ensure assembly does not damage conducting paths.
  • Mount on a stable, even, and tilt-fixed background.

Quality Control Measures:

  • Stability Test: 100% aging test for at least 48 hours.
  • Lighting Test: 100% inspection before packing.
  • Drop Test: Verified protection for every single light box.

Frequently Asked Questions

Q1: What is the benefit of the Full Spectrum design? A1: It includes Blue, Red, IR, UV, and White light, mimicking natural sunlight to promote plant growth, defense mechanisms, and optimal flowering across all stages.
Q2: How does the cooling system work? A2: The light utilizes an aluminum bar structure for high-efficiency passive natural cooling or optional water cooling, ensuring excellent thermal management.
Q3: Can I use this for a high-humidity greenhouse? A3: Yes, the product has an IP65 rating and is designed to work in environments with 10% to 95% relative humidity.
Q4: What is the coverage area for the ATA-1000WB? A4: At a height of 1 meter, the light effectively covers an area of approximately 6.0 square meters.
Q5: What is the expected lifespan and warranty? A5: The LED light has a rated life of 50,000 hours and comes with a 3-year warranty for peace of mind.
Q6: Is the installation difficult? A6: No, it supports suspending installation and features a modular optical lens design which is convenient for assembly and setup.
