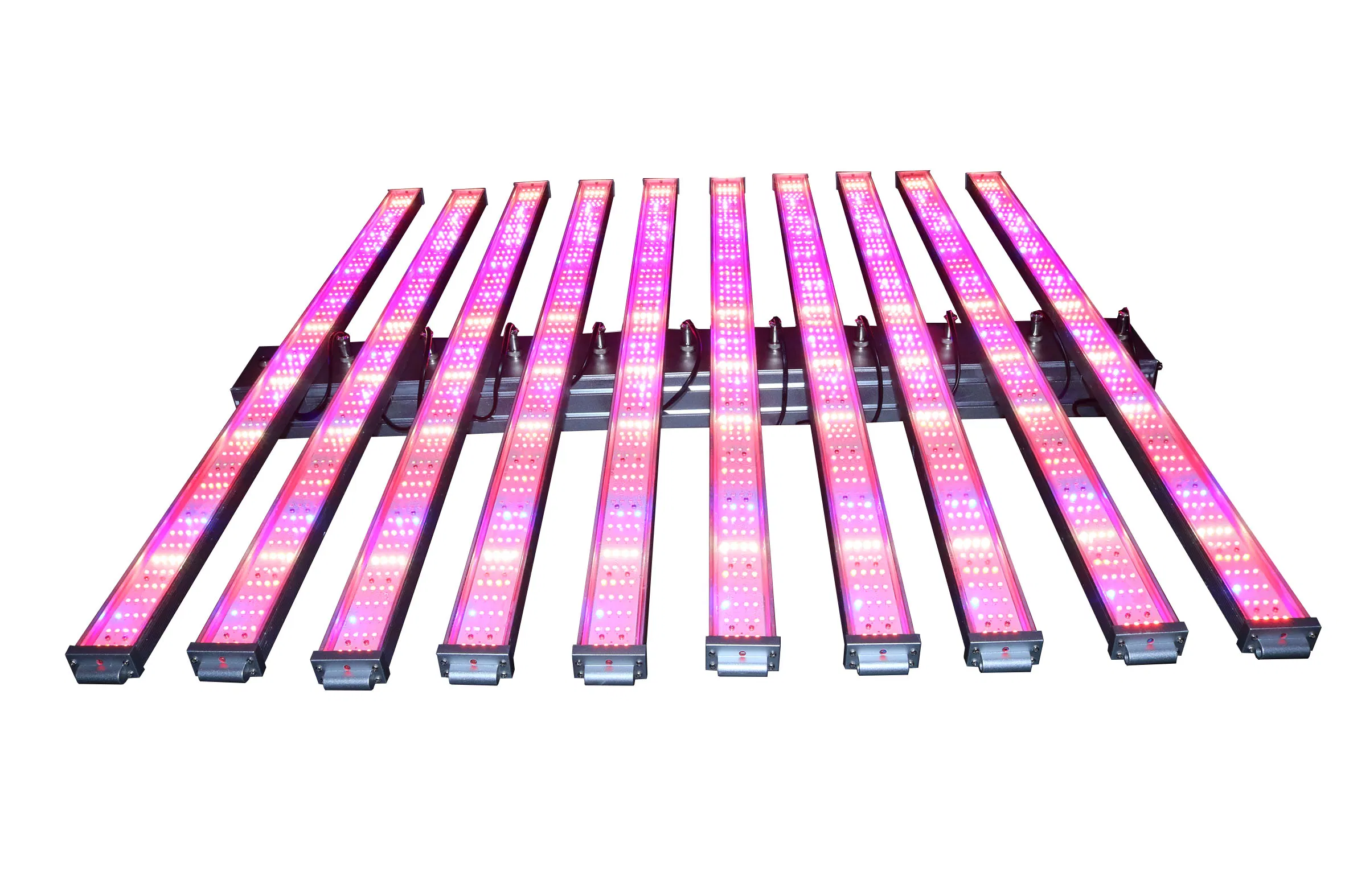

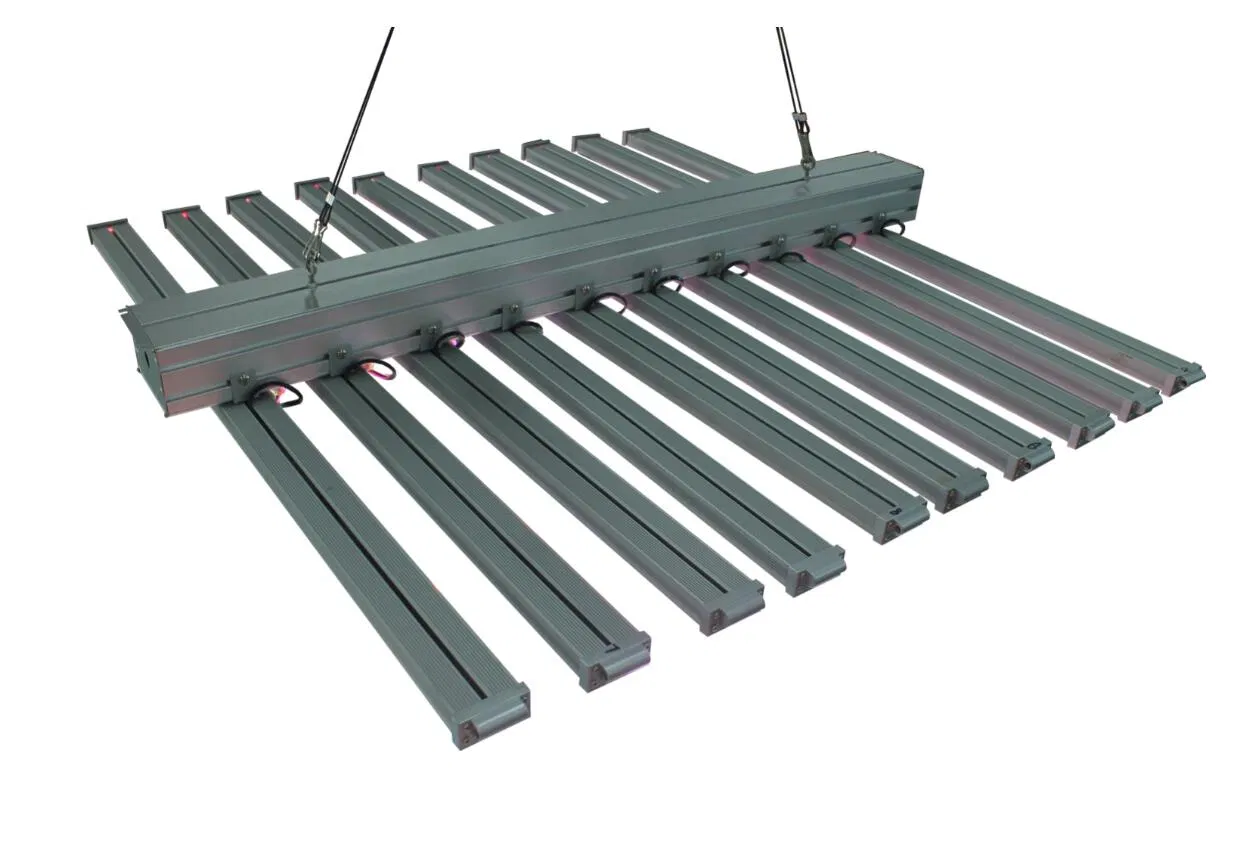

Adjustable LED Plant Grow Bar Light
Maximize your indoor crop yields with our high-efficiency Adjustable LED Plant Grow Bar Light. Engineered with advanced thermal management and a custom-tailored light spectrum, this system delivers optimal growth performance across all vegetative and flowering stages.
Product Advantages
1. Customized LED Spectrum
Tailored spectrum options designed to support plants through Veg and Flower phases with all required natural sunlight wavelengths.
2. Full Spectrum Output
Features essential Blue, Red, IR, UV, and white light to mimic natural sunlight, triggering defense mechanisms and accelerating overall plant development.
3. Adjustable Bar & Heat Dissipation
Variable spacing between bars allows custom lighting intensity and direction. Robust aluminum body optimizes air convection for thermal management.
4. Modular Optical Lens
Highly convenient modular assembly that streamlines setup and simplifies the physical installation process.
5. Efficient Alternative to HPS/MH
Replaces conventional 400W HPS/MH systems while consuming only 108W. Delivers exceptional coverage up to 6 square meters at a 1-meter height.
6. Growth Support Assistance
Tailored spectrum supports custom client plant requirements, assisting you from plant seedling and flowering to final fruit yield stages.

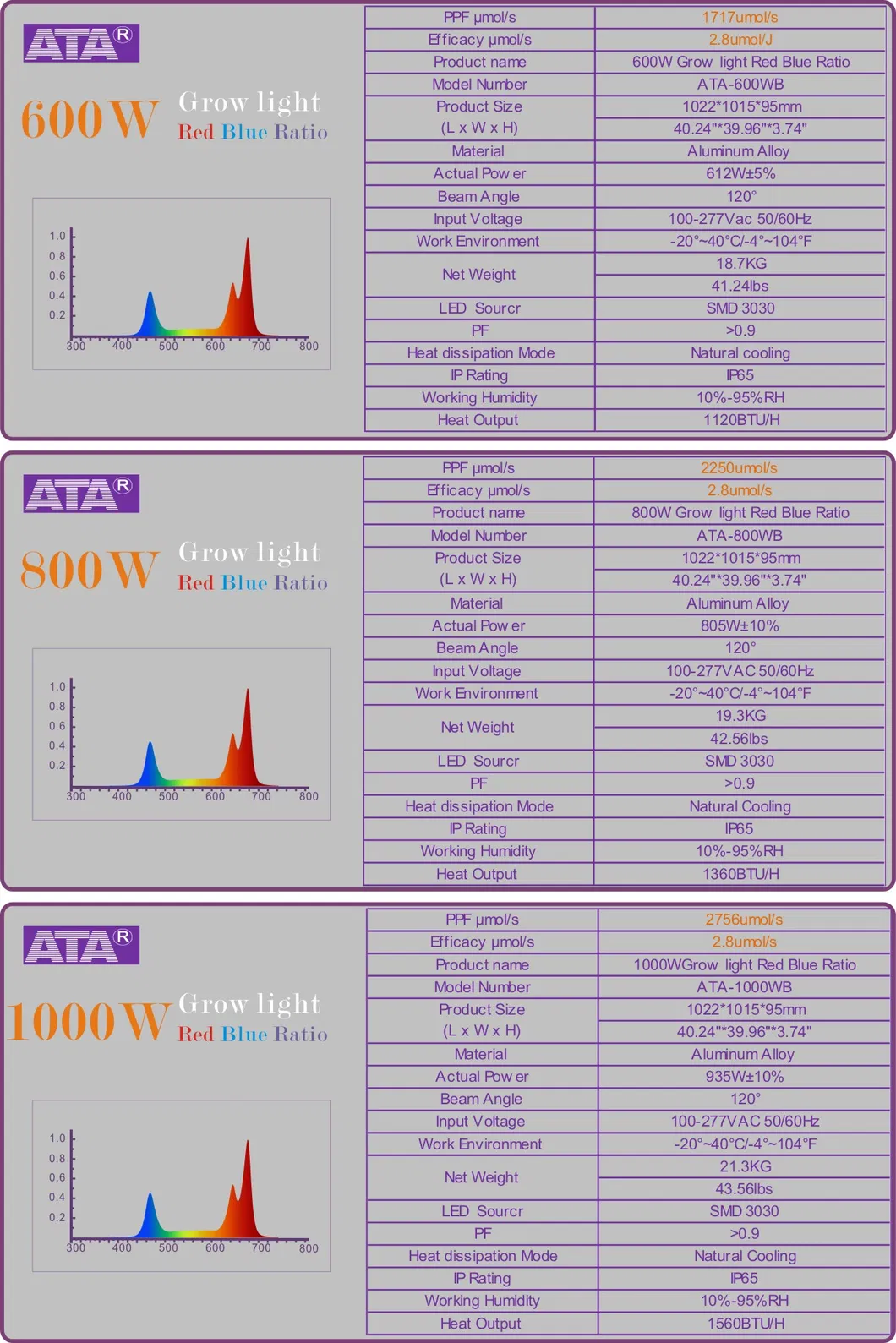

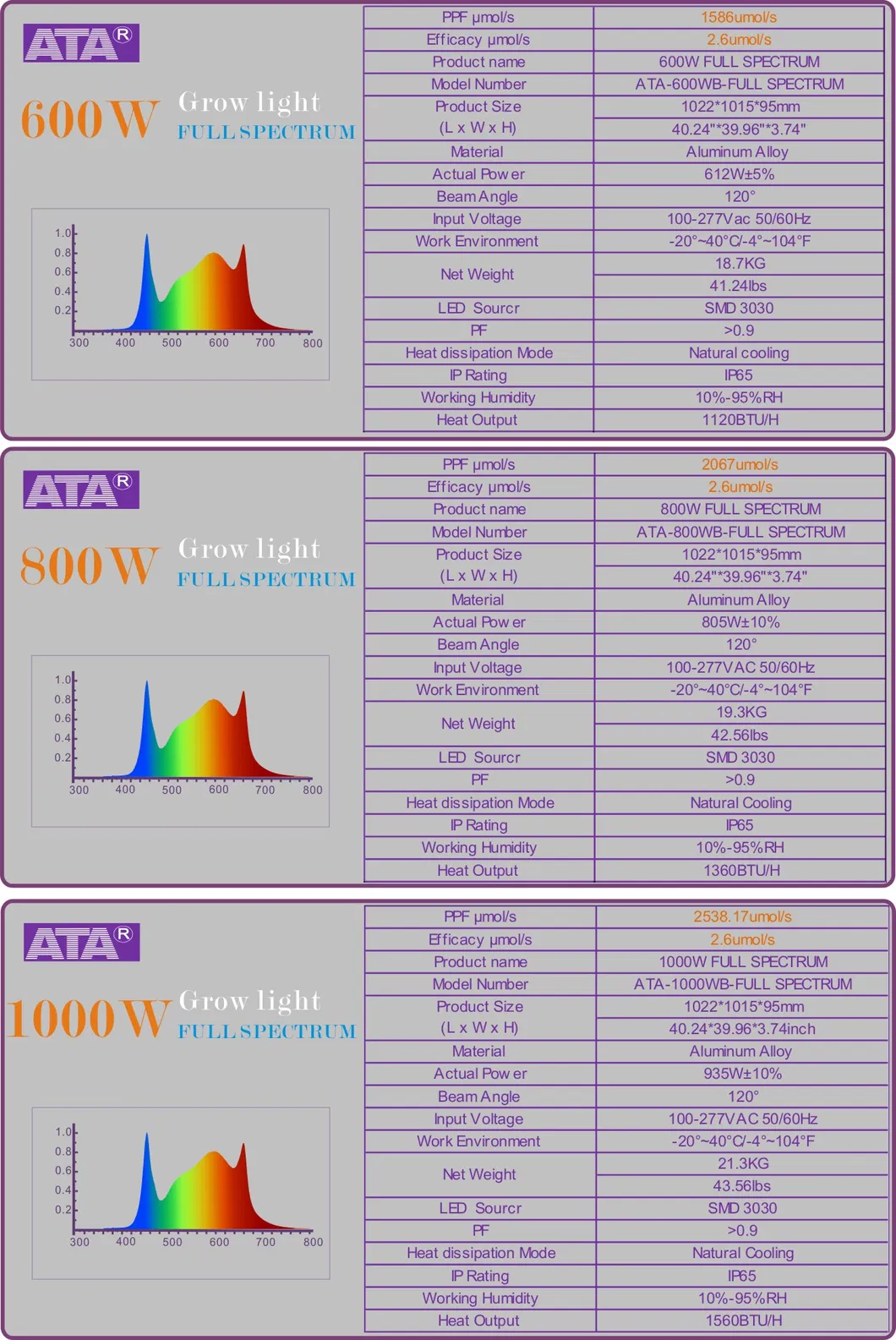

Technical Specifications
| Product name |
600W Top module lighting |
600W Top module lighting |
600W Top module lighting |
| Model |
ATA-M600W |
ATA-M600W-LENS |
ATA-M600W-FULL SPECTRUM |
| Product Size (L x W x H) |
1022*1015*95mm |
1022*1015*95mm |
1022*1015*95mm |
| 40.24*39.96*3.74inch |
40.24*39.96*3.74inch |
40.24*39.96*3.74inch |
| Material |
Aluminum Alloy |
Aluminum Alloy |
Aluminum Alloy |
| Power Consumption |
545W±5% |
545W±5% |
545W±5% |
| Led Type |
3W /LED 3030 LED |
3W /LED 3030 LED |
1W /LED 5730 LED |
| Led Quantity |
130PCS*10*3=3900W |
130PCS*10*3-3900W |
130PCS*10=1300W |
| Beam Angle |
without lens120° |
with lens90° |
without lens120° |
| Input Voltage |
100-277Vac 50/60Hz |
100-277Vac 50/60Hz |
100-277Vac 50/60Hz |
| Work Environment |
-20°~40°C/-4°~104°F |
-20°~40°C/-4°~104°F |
-20°~40°C/-4°~104°F |
| Net Weight |
18.7KG |
18.7KG |
18.7KG |
| 41.24lbs |
41.24lbs |
41.24lbs |
| PF |
0.9 |
0.9 |
0.9 |
| Heat dissipation mode |
Natural cooling |
Natural cooling |
Natural cooling |
| Light decay |
<15% In three years |
<15% In three years |
<20% In Two years |
| IP rating |
IP65 |
IP65 |
IP65 |
| Working Humidity |
10%-95%RH |
10%-95%RH |
10%-95%RH |
| PPF µmol/s |
1586umol/s |
1586umol/s |
1586umol/s |
| Heat Output |
1120BTU/H |
1120BTU/H |
1120BTU/H |
| Lighting area |
1M High 6.0M² |
1M High 6.0M² |
1M High 6.0M² |
| Warranty |
Three years |
Three years |
Two years |
PPFD Map

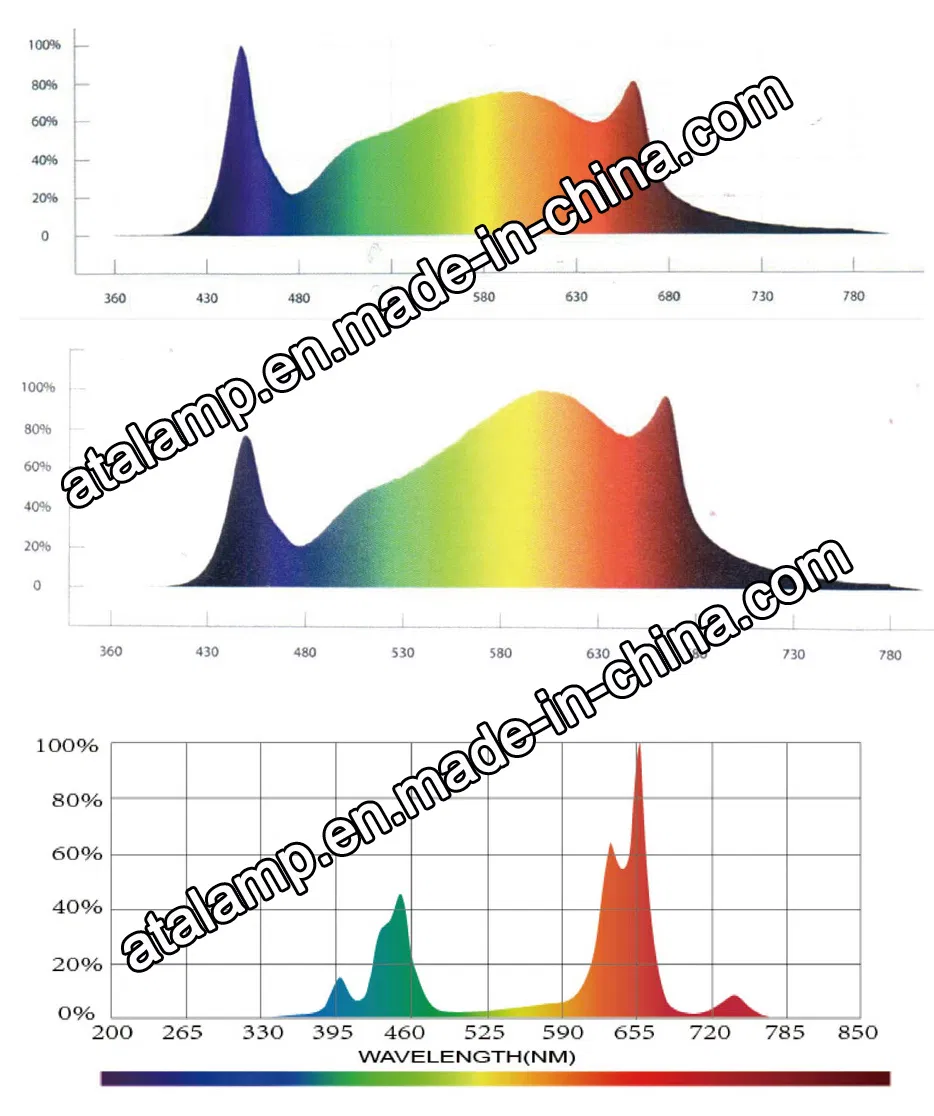

Spectrum Output

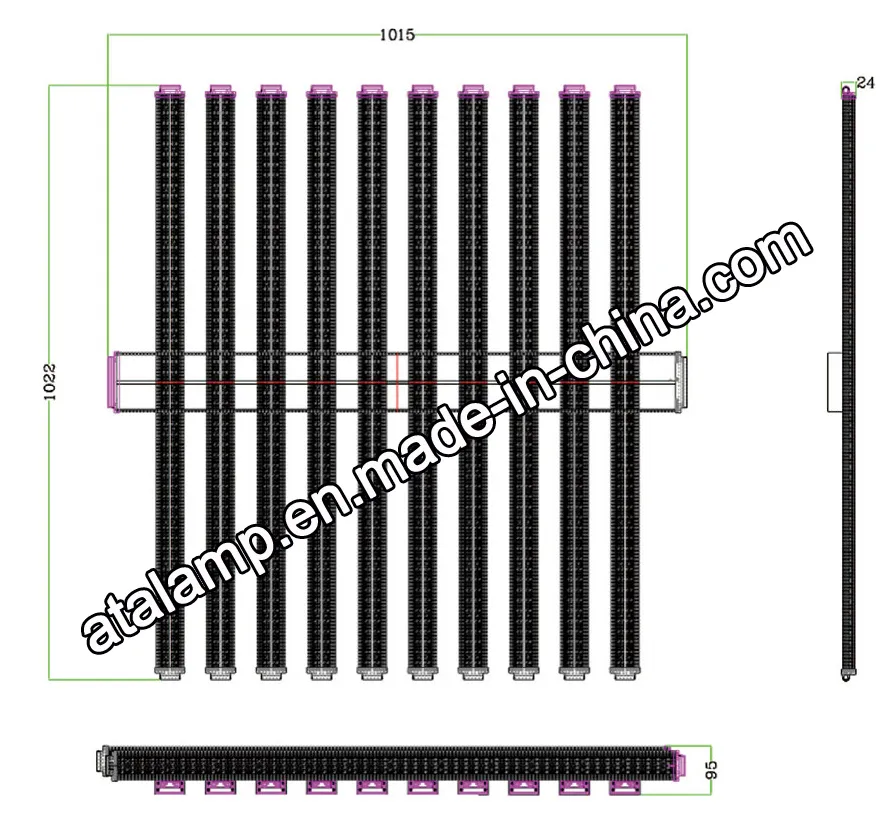

Product Dimensions

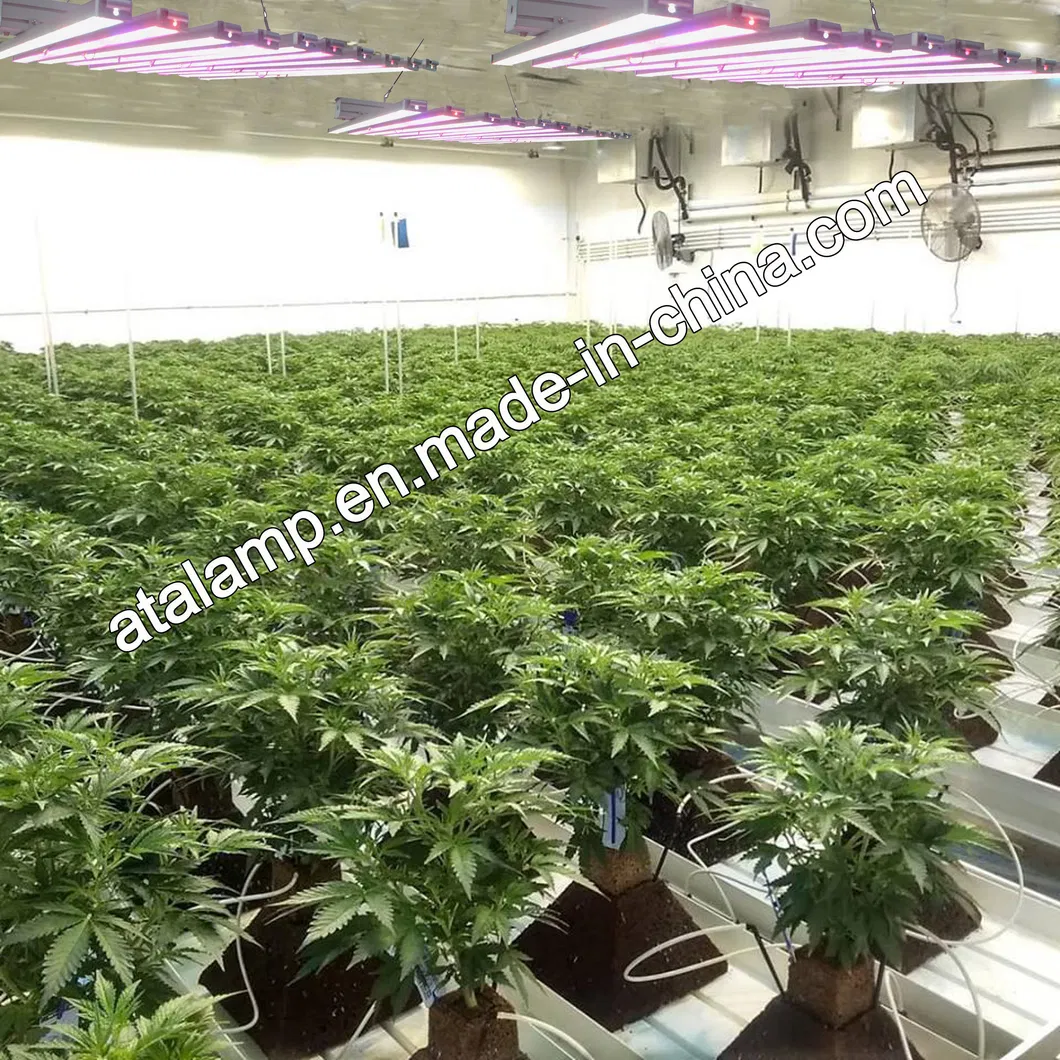

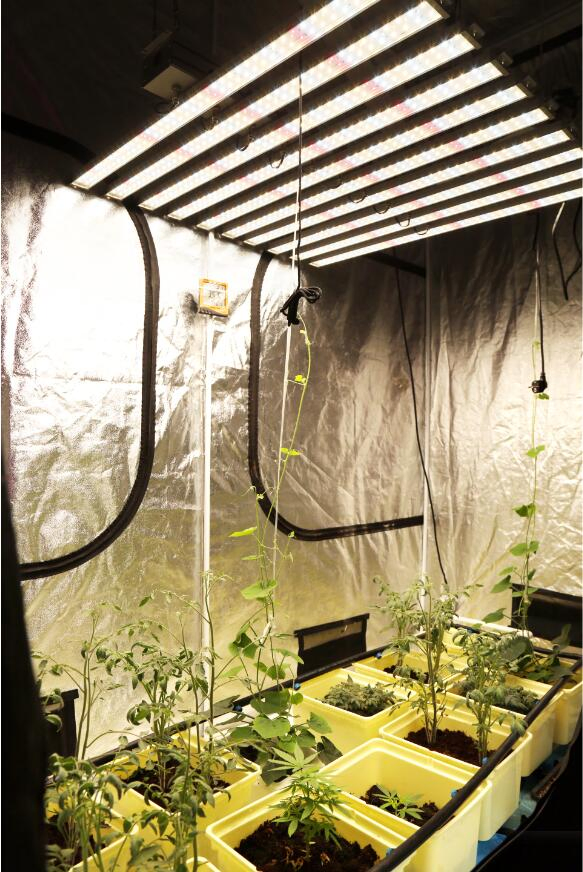

Installation (Suspending)

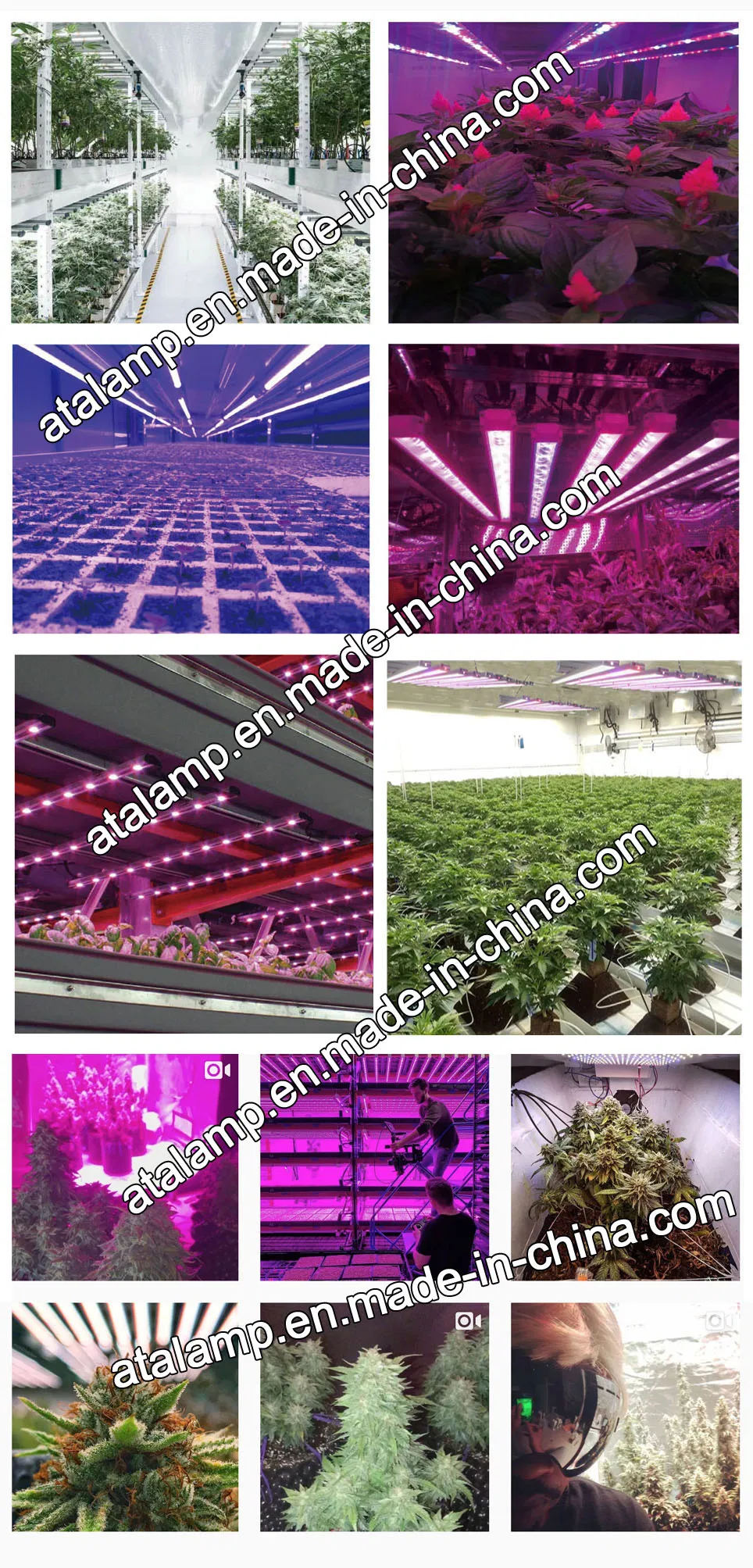

Applications
Perfect for growing fruit, vegetables, flowers, special crops, leafy greens, seedling propagation, mixed-light setups, supplemental greenhouse lighting, indoor gardens, potted plant setups, and farmland spray systems.
User Manual Guidelines
- Switch off power of the mains supply or respectively of the connection lead before doing any works.
- Assembly must not damage or destroy conducting paths.
- Make sure that the product is mounted on a stable, even and tilt-fixed background.
- The complete installation must be done by an electrical expert who is familiar with the valid directives.
Quality Control Standard
- Stability TEST: 100% of the lamps undergo aging testing for at least 48 hours.
- Lighting TEST: 100% of the lamps are tested and verified before final packing.
- Drop TEST: Ensuring every single light is securely protected within packaging boxes.
Frequently Asked Questions (FAQ)
What spectrum does this LED plant grow light use?
This system features a full spectrum configuration including universal Blue, Red, IR, UV, and white light to mimic natural sunlight, driving plant growth and defending structural mechanisms.
How does this 600W LED compare to traditional HPS/MH lights?
The 600W LED light replaces a traditional 400W HPS/MH while drawing only 108W of power, making it a highly energy-efficient alternative for crop operations.
How is the heat managed in the fixture?
The light is designed using an aluminum bar structure. This allows natural cooling through optimized air convection paths for maximum thermal management and long-term lifespan.
What is the recommended installation method for this product?
This system is designed for a suspended installation, allowing you to hang the adjustable bars above the plant canopy for tailored beam coverage.
What is the coverage area and operating range?
At 1 meter height, this fixture comfortably covers an area of up to 6 square meters. The system is designed to operate safely between -20°C to 40°C (-4°F to 104°F).
What is the IP rating of the fixture?
This product is rated IP65, meaning it is protected against dust and low-pressure water streams, making it suitable for humid greenhouse environments.
