Basic Info.
Housing Material
Aluminum
Certification
CE, RoHS, CCC, GS, Energy Star, FCC, SAA, C-tick, NOM, PSE, GOST, EMC, LVD, KEMA, IMQ
LED Quantity
130PCS*10*3=3900W
Cooling Methods
Passive Cooling or Water Cooling
Working Humidity
10%-95%Rh
Spectrum
Red Blue Ratio, Full Spectrum
LED Brand
Epiled/Sumsung/Creeosram
Lighting Area
1m High 6.0 Square Meters

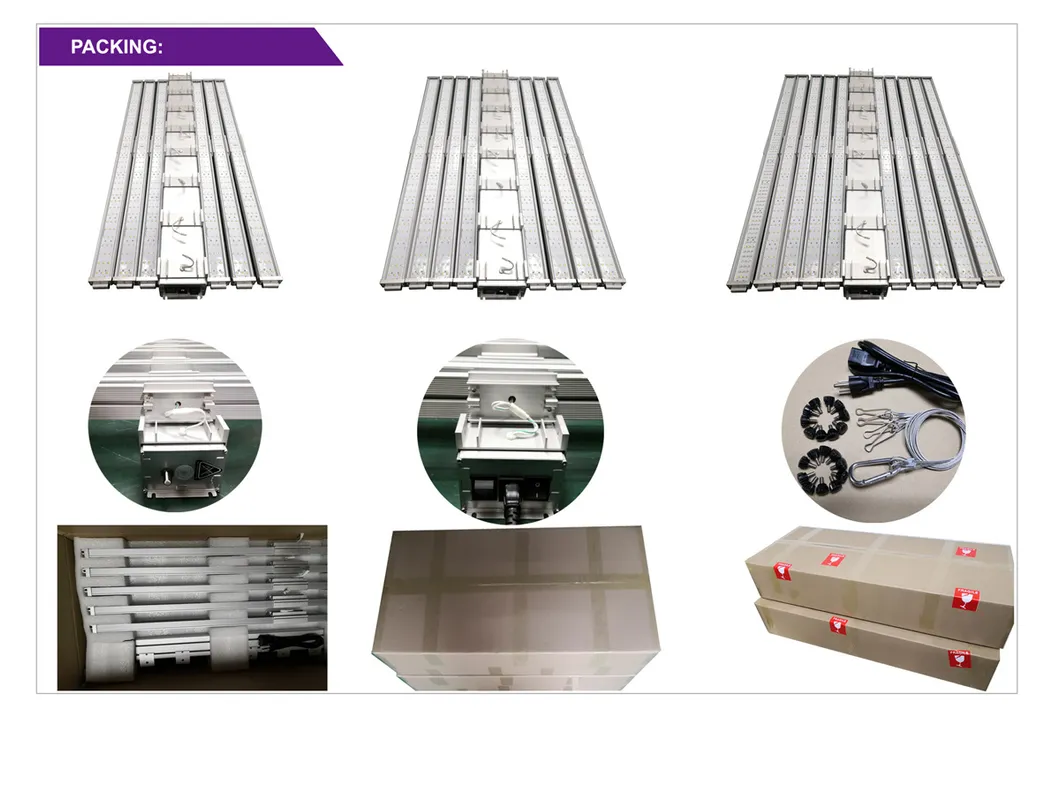

Transport Package
Pearl Foam Inner Box and K=K
Specification
1022*1015*95mm
Production Capacity
300, 000/Pieces/Month

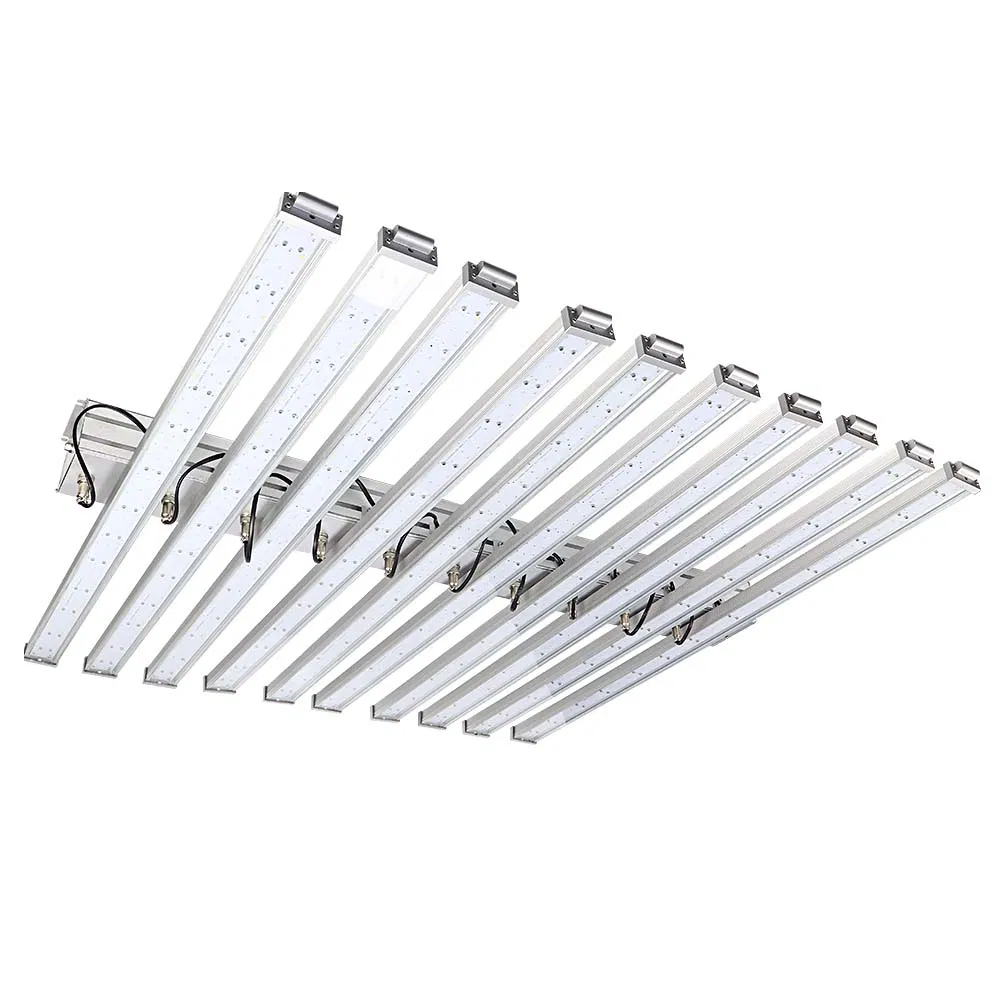

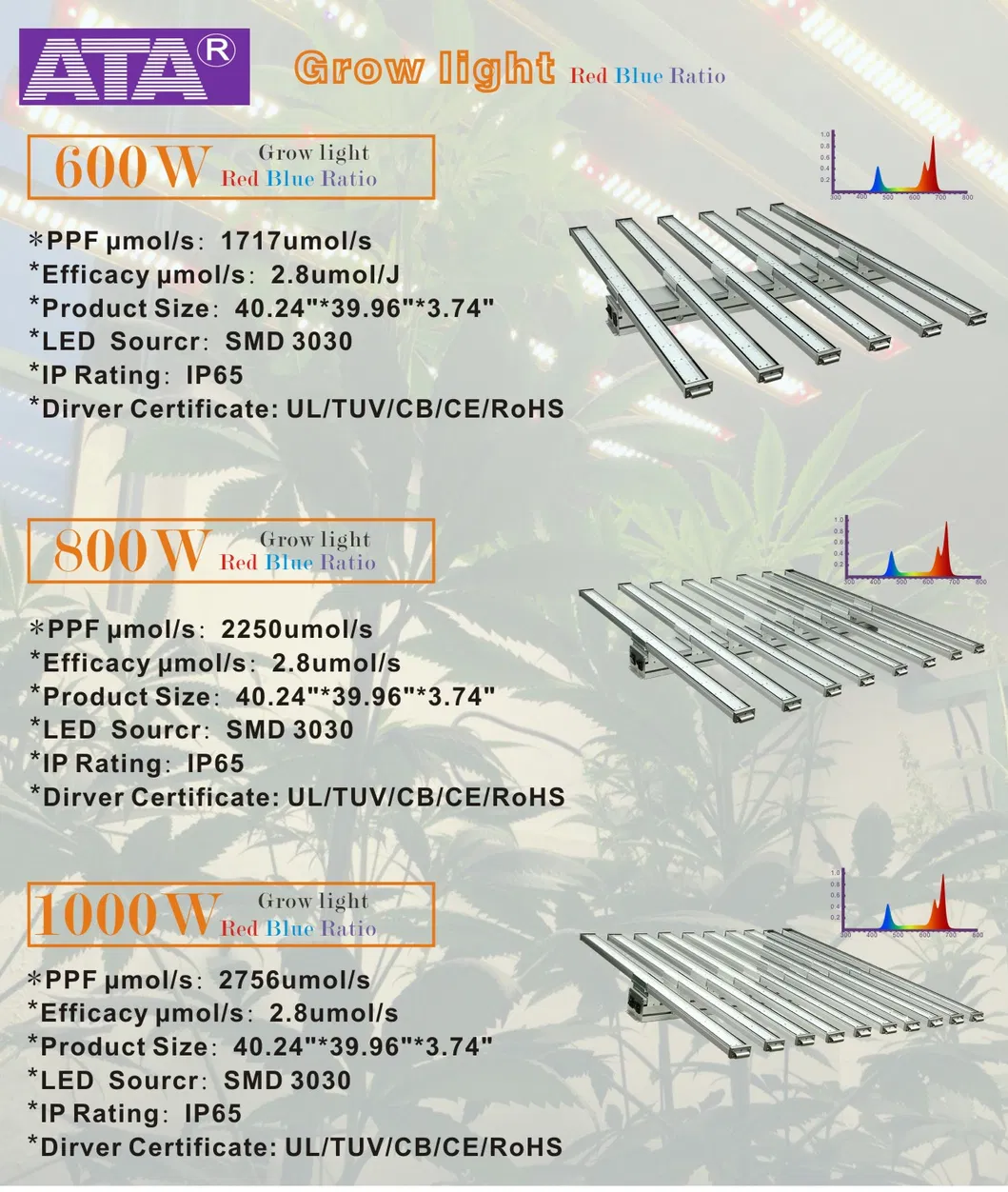

Adjustable LED Plant Grow Bar Light
Product Advantages:
-
1. Customize LED spectrum varies plants
The optimal full spectrum which provides plants Veg and Flower all stages with everything they desire in the natural sunlight.
-

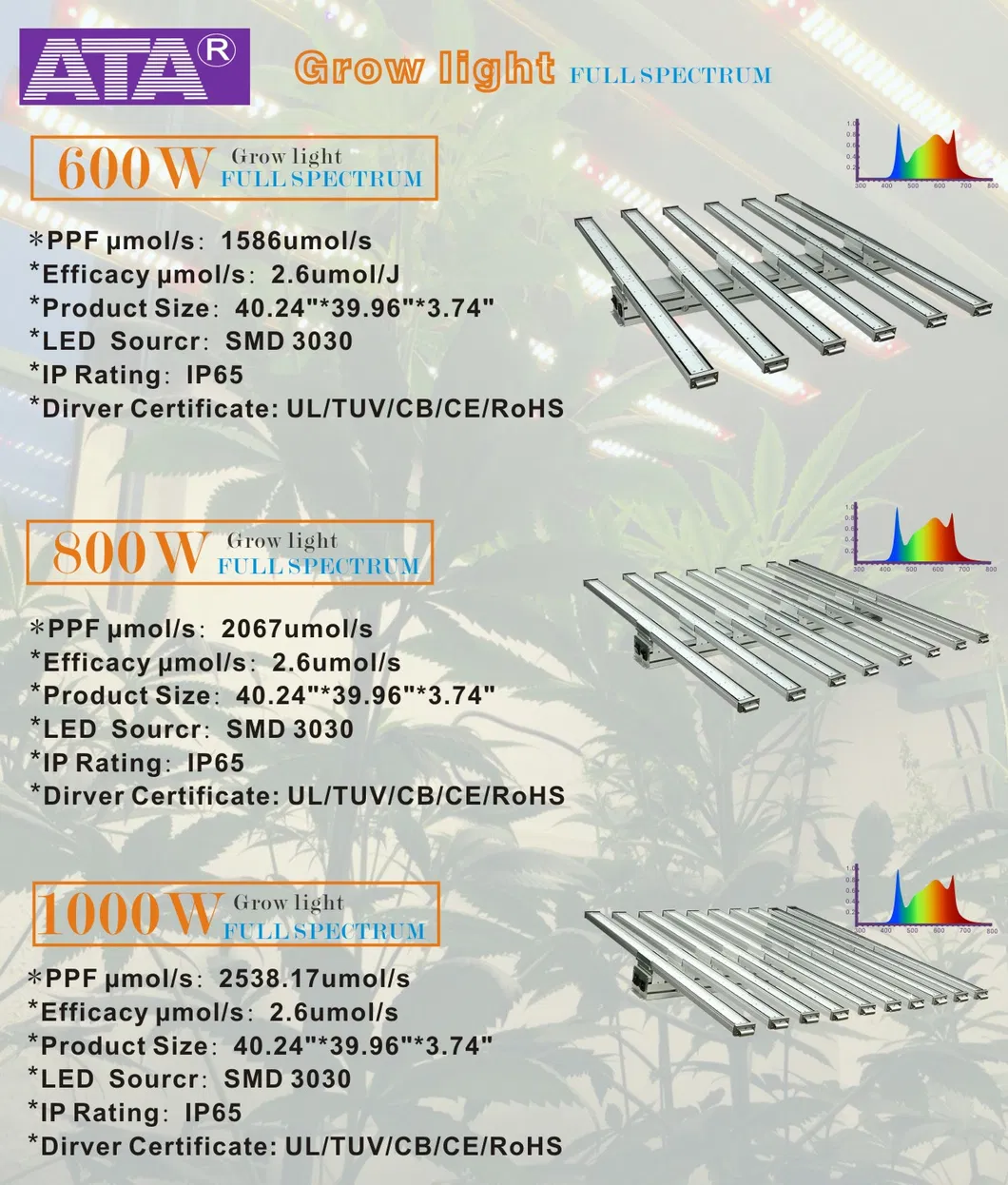

2. Full Spectrum
We did lots of experimentation to ensure that this full spectrum design promotes plant growth. It includes universal Blue Red IR UV and white light provide everything plant desire in the natural sunlight. The expensive IR UV led promote plants to defense mechanisms, blue and red led is essential light for plant growth.
-

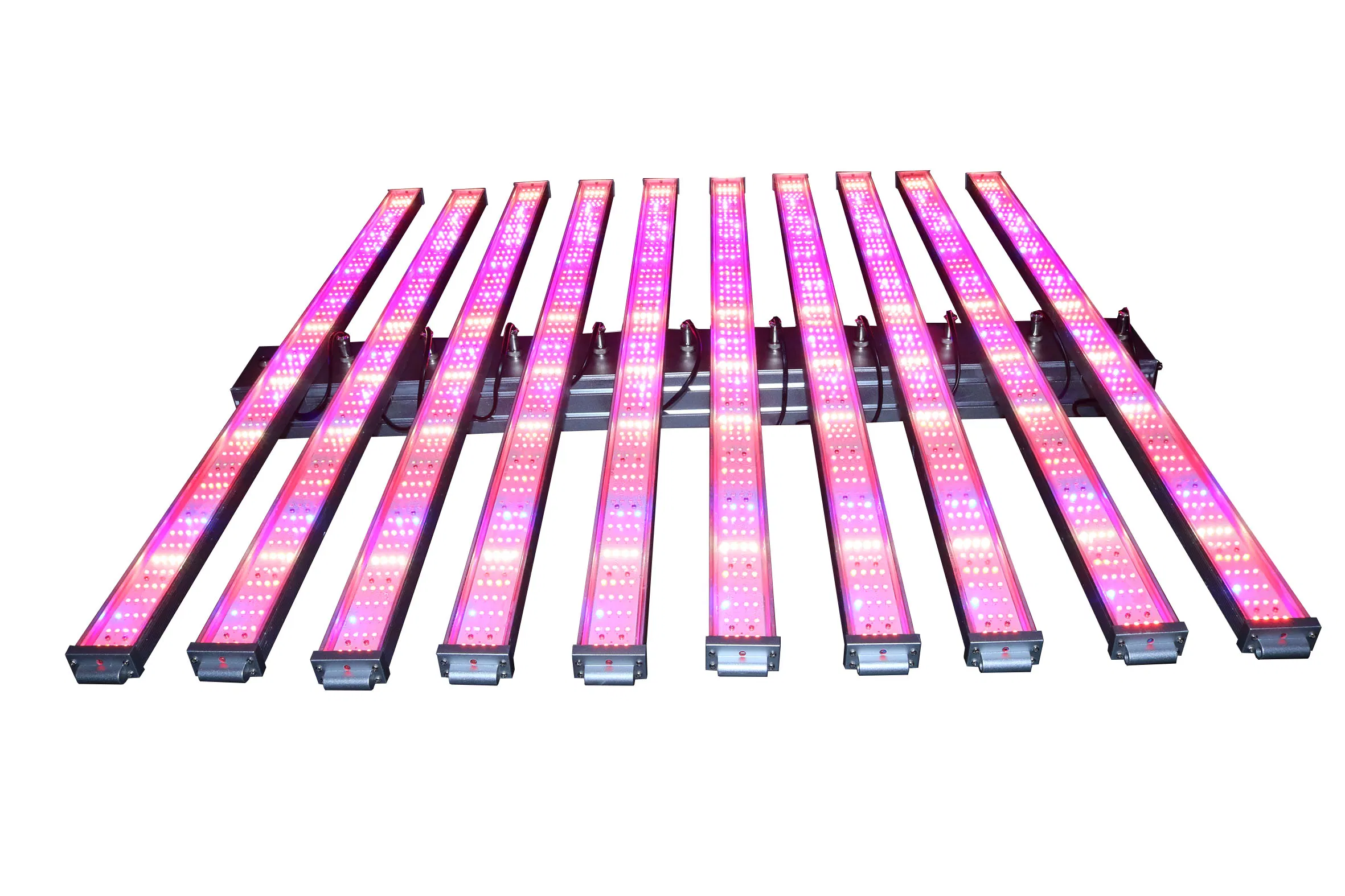

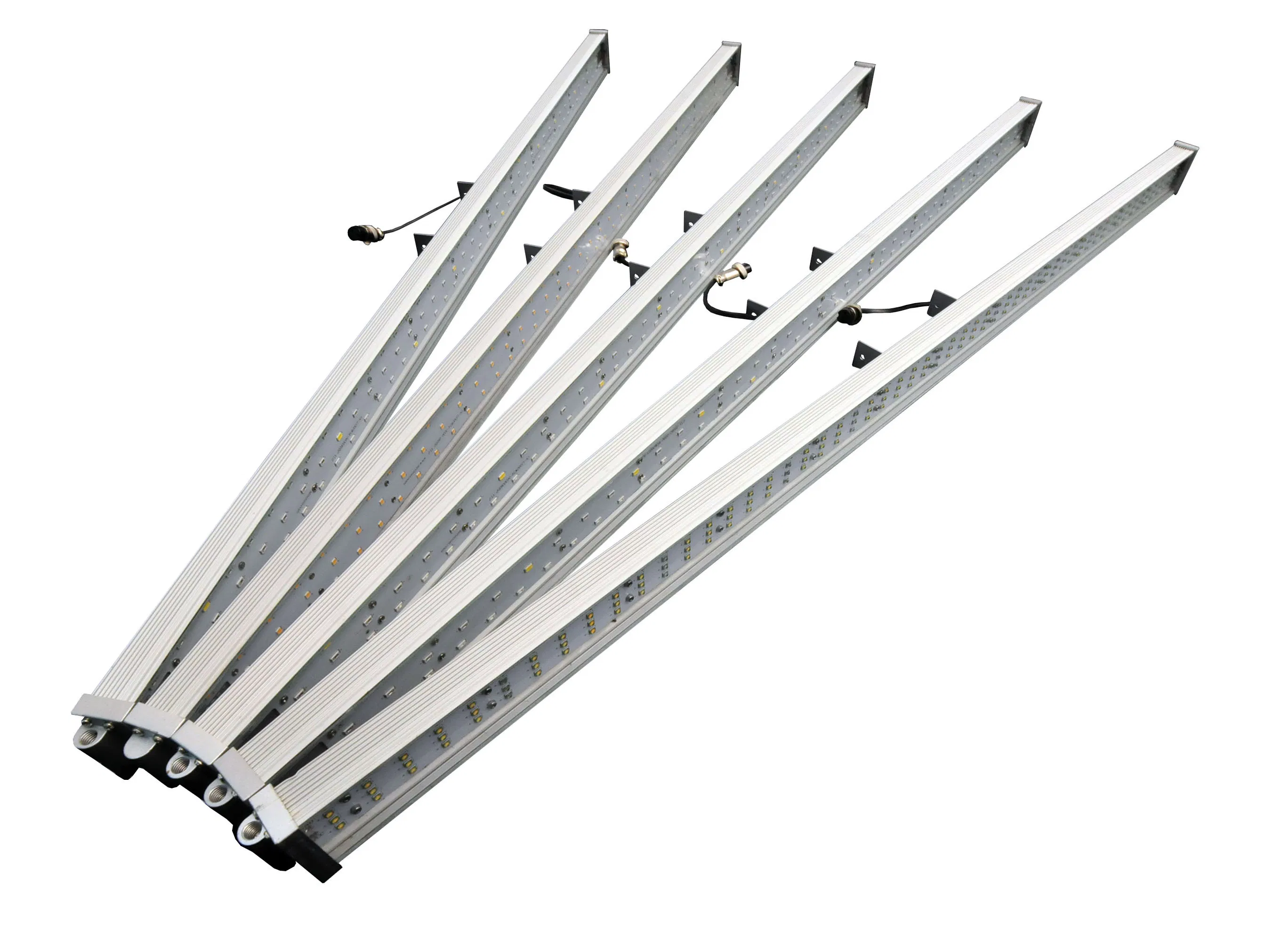

3. Adjustable bar, distance between LED bar for different lighting intensity and Lighting direction
Aluminum bar structure good for heat dissipation, air convection effect, good thermal management system, improving heat dissipation performance to long life time.
-
4. Optical lens Modular, convenient to assemble and installation
-
5. Compare TO HPS/MH
The 600W LED grow light can replace traditional 400 watt HPS/MH while consuming only 108 watts! More effective coverage area than any reflector series lights. perfect for a growing area at 1m height 6 square meters.
-
6. BEST SERVICE
Customize LED spectrum varies plants, we accompany with clients from plant, flower, fruit, professional and patient assistant in each stage.
Technical Specifications
| Product name |
600W Top module lighting |
600W Top module lighting |
600W Top module lighting |
| Model |
M600W |
M600W-LENS |
M600W-FULL SPECTRUM |
| Product Size (L x W x H) |
1022*1015*95mm |
1022*1015*95mm |
1022*1015*95mm |
| 40.24*39.96*3.74inch |
40.24*39.96*3.74inch |
40.24*39.96*3.74inch |
| Material |
Aluminum Alloy |
Aluminum Alloy |
Aluminum Alloy |
| Power Consumption |
545W±5% |
545W±5% |
545W±5% |
| Led Type |
3W /LED 3030 LED |
3W /LED 3030 LED |
1W /LED 5730 LED |
| Led Quantity |
130PCS*10*3=3900W |
130PCS*10*3-3900W |
130PCS*10=1300W |
| Beam Angle |
without lens 120° |
with lens 90° |
without lens 120° |
| Input Voltage |
100-277Vac 50/60Hz |
100-277Vac 50/60Hz |
100-277Vac 50/60Hz |
| Work Environment |
-20°~40°C/-4°~104°F |
-20°~40°C/-4°~104°F |
-20°~40°C/-4°~104°F |
| Net Weight |
18.7KG |
18.7KG |
18.7KG |
| 41.24lbs |
41.24lbs |
41.24lbs |
| PF |
0.9 |
0.9 |
0.9 |
| Heat dissipation mode |
Natural cooling |
Natural cooling |
Natural cooling |
| Light decay |
<15% In three years |
<15% In three years |
<20% In Two years |
| IP rating |
IP65 |
IP65 |
IP65 |
| Working Humidity |
10%-95%RH |
10%-95%RH |
10%-95%RH |
| PPF µmol/s |
1586umol/s |
1586umol/s |
1586umol/s |
| Heat Output |
1120BTU/H |
1120BTU/H |
1120BTU/H |
| Lighting area |
1M High 6.0M² |
1M High 6.0M² |
1M High 6.0M² |
| Warranty |
Three years |
Three years |
Two years |
PPFD

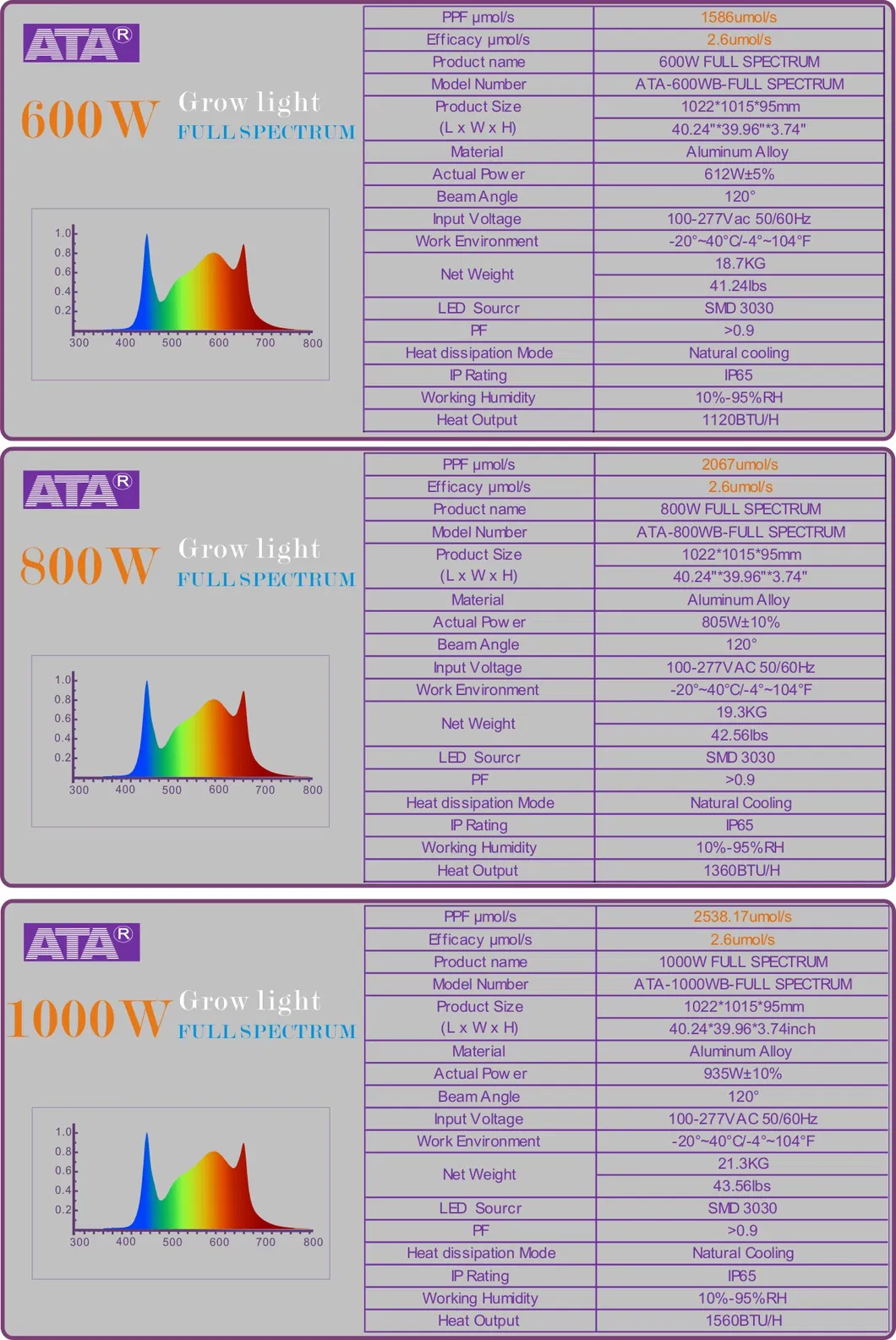

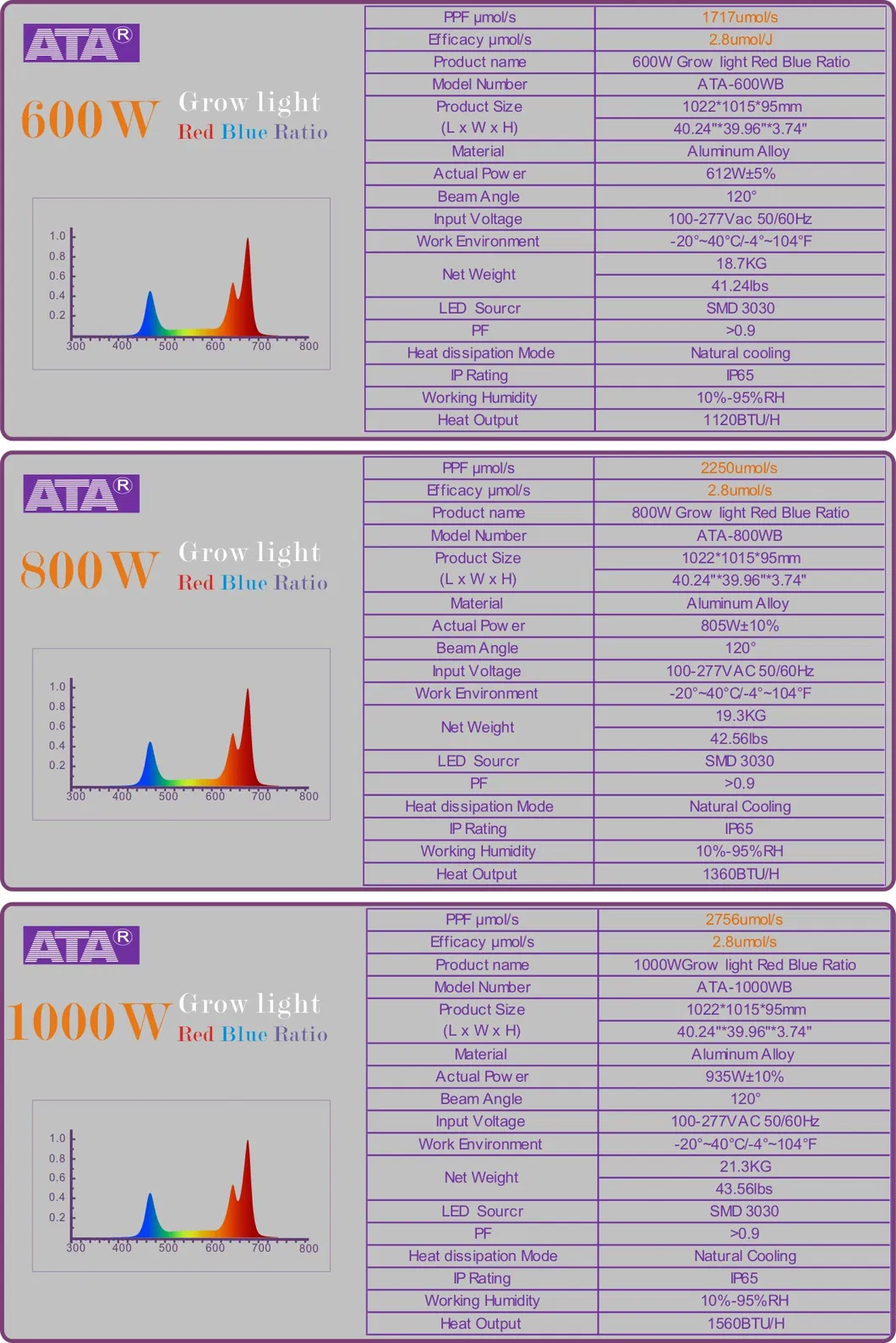

Spectrum
Product Dimension

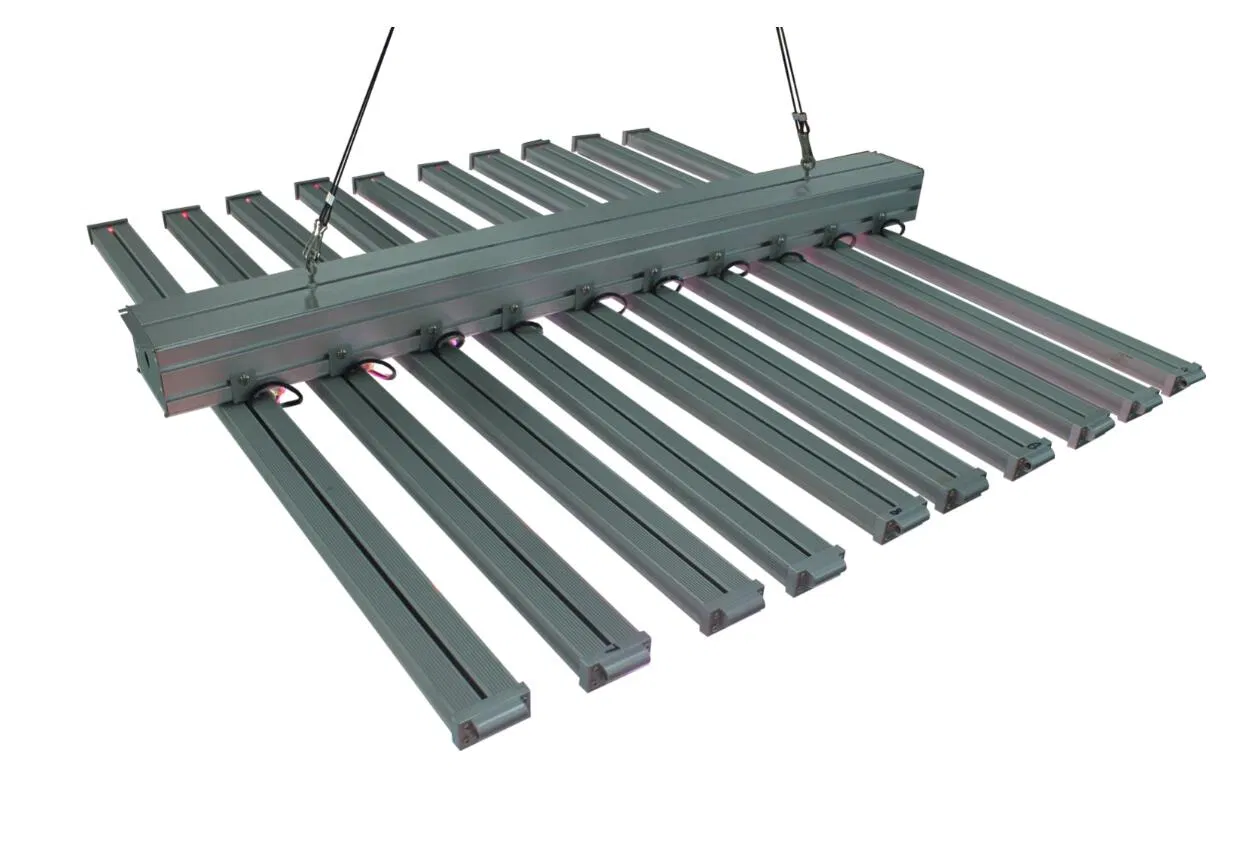

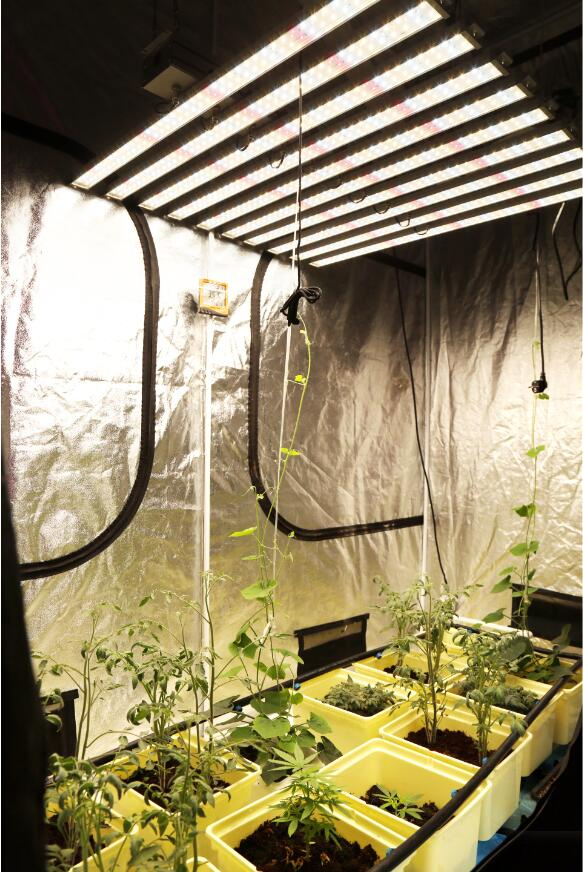

Installation: Suspending
Application
Fruit, Vegetable, Flowers, Special Crops, Leafy, Fruit, Seedling, propagation, mixed-light, supplemental, complete indoor or greenhouse, Medical plants, indoor garden, pot plants, garden, breeding, farmland, spray plant, greenhouse plants, pipeline cultivation, flowering, etc.
User Manual
- Switch off power of the mains supply or respectively of the connection lead before doing any works.
- Assembly must not damage or destroy conducting paths.
- Make sure that the product is mounted on a stable, even and tilt-fixed background.
- The complete installation must be done by an electrical expert who is familiar with the valid directives.
Quality Control
- Stability TEST: make sure 100% of the lamps be aging test at least 48hours
- Lighting TEST: make sure 100% of the lamps be lighted before packing
- Drop TEST: make sure every single light have been well protected by box
What spectrum does this LED plant grow light use?
This light utilizes a customizable Full Spectrum design, incorporating universal Blue, Red, IR, UV, and white light to replicate natural sunlight and stimulate all vegetative and flowering stages of plants.
Can the distance between the LED bars be adjusted?
Yes, it features an adjustable bar design, allowing you to configure the distance between the bars to achieve different lighting intensities and directions based on the crop's requirements.
What cooling methods are supported by this grow light?
The lighting system is equipped with an efficient aluminum structure that supports both Passive Cooling and Water Cooling methods for optimal thermal management and a lifespan of up to 50,000 hours.
How does this LED light compare to traditional HPS/MH systems?
This highly efficient LED grow light system provides a broader, more effective coverage area and can replace standard HPS/MH lamps while consuming significantly less actual electricity. For instance, the 600W specification consumes only around 108W compared to traditional 400W HPS/MH systems.
What is the coverage area and proper installation method?
The recommended mounting option is Suspending. When suspended at a height of 1 meter, the light provides a highly effective coverage area of approximately 6.0 square meters.
What quality checks are conducted before delivery?
Every fixture undergoes rigorous Quality Control, including a continuous stability test with at least 48 hours of aging, 100% functional lighting checks, and drop tests to verify the resilience of packaging protection.
