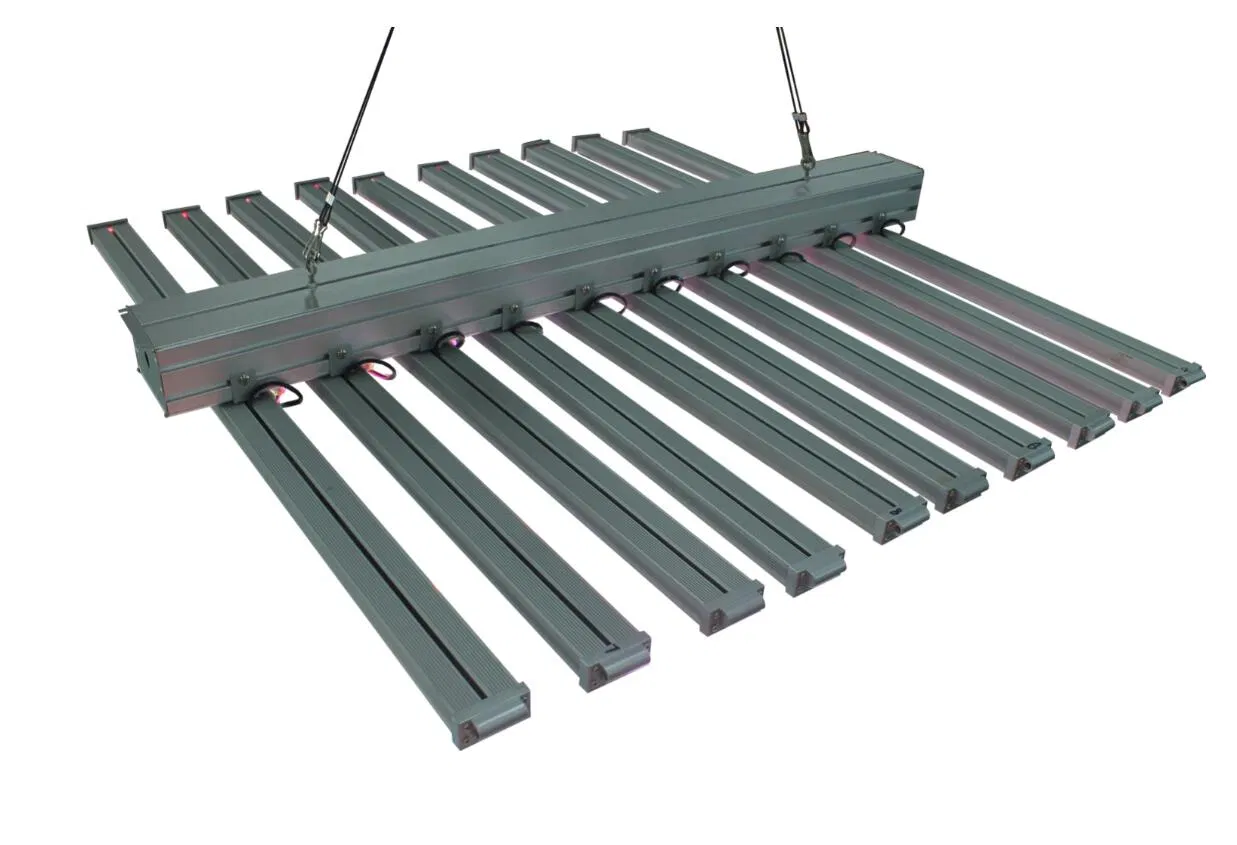

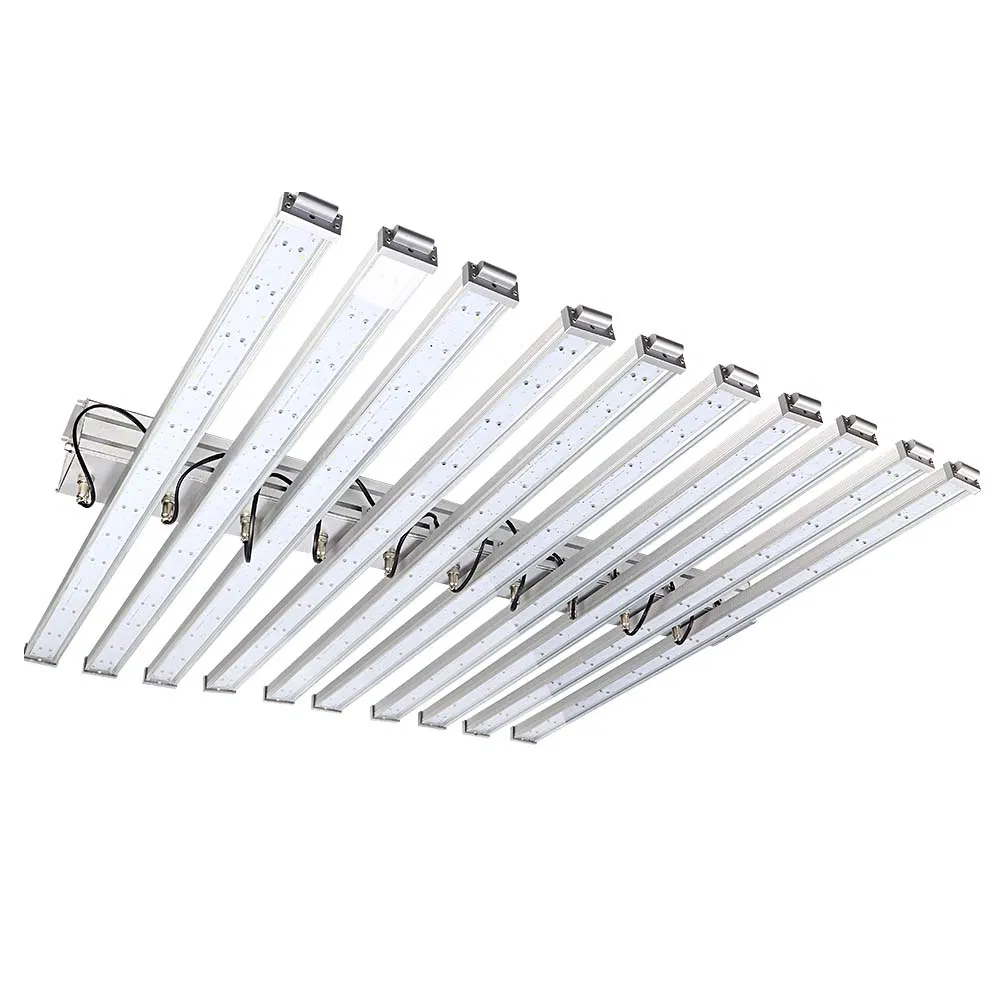

Spider LED Grow Bar Light Top Module Lighting IP65 Full Spectrum 1000W LED Grow Light for Indoor Plant

Product Description

Adjustable LED Plant Grow Bar Light

Product Advantages

📊 Customizable Spectrum The optimal full spectrum provides plants at Veg and Flower stages with everything they desire in natural sunlight.
☀️ Full Spectrum Design Includes universal Blue, Red, IR, UV, and White light. Expensive IR/UV LEDs promote defense mechanisms essential for healthy growth.
🛠️ Adjustable Structure Adjustable bars and distance for different lighting intensity and direction. Aluminum bar structure ensures excellent heat dissipation.
🔋 Energy Efficiency Replaces traditional 400W HPS/MH while consuming only 108 watts, covering 6 square meters at 1m height.

Product Showcase

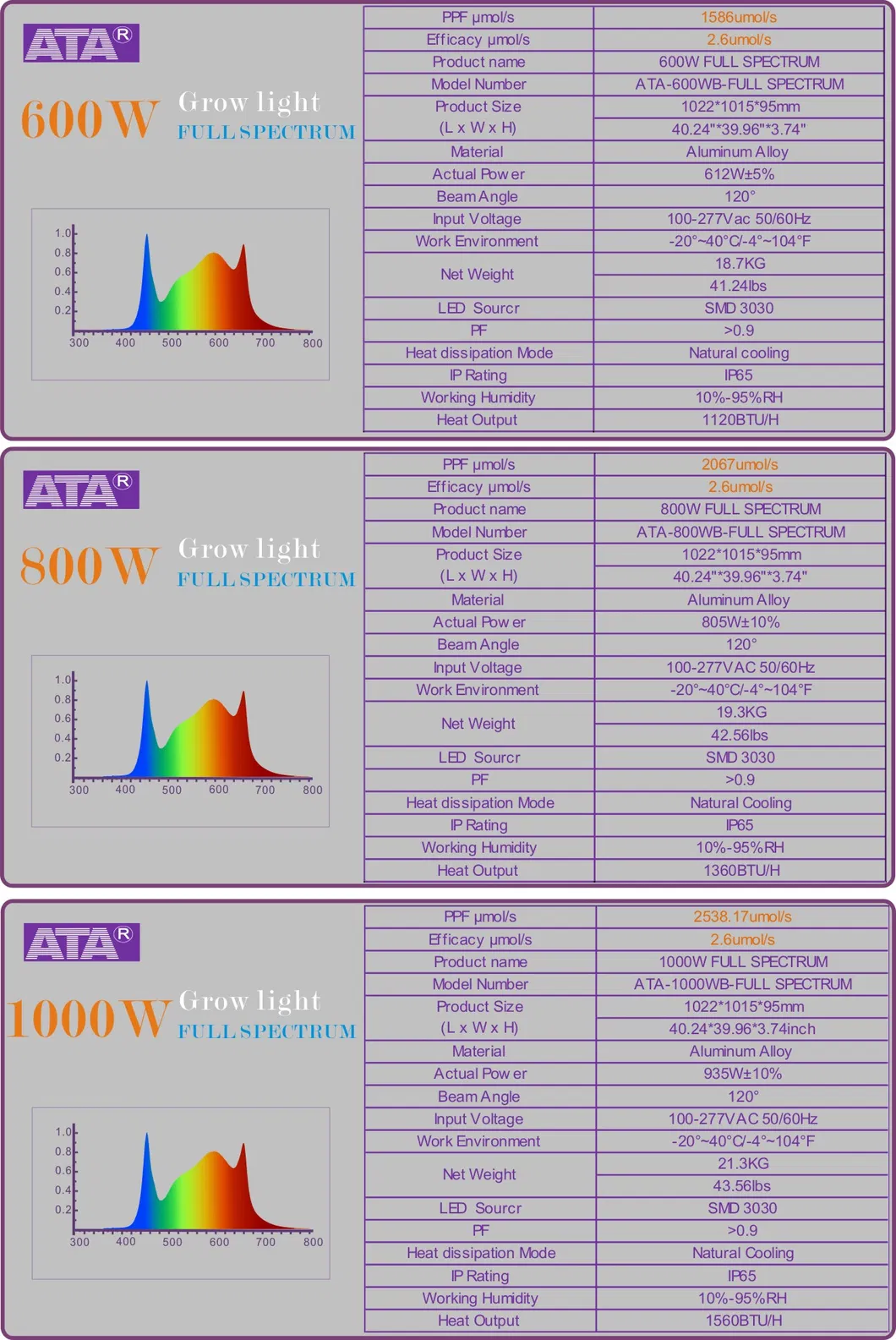

LED Grow Light View 1

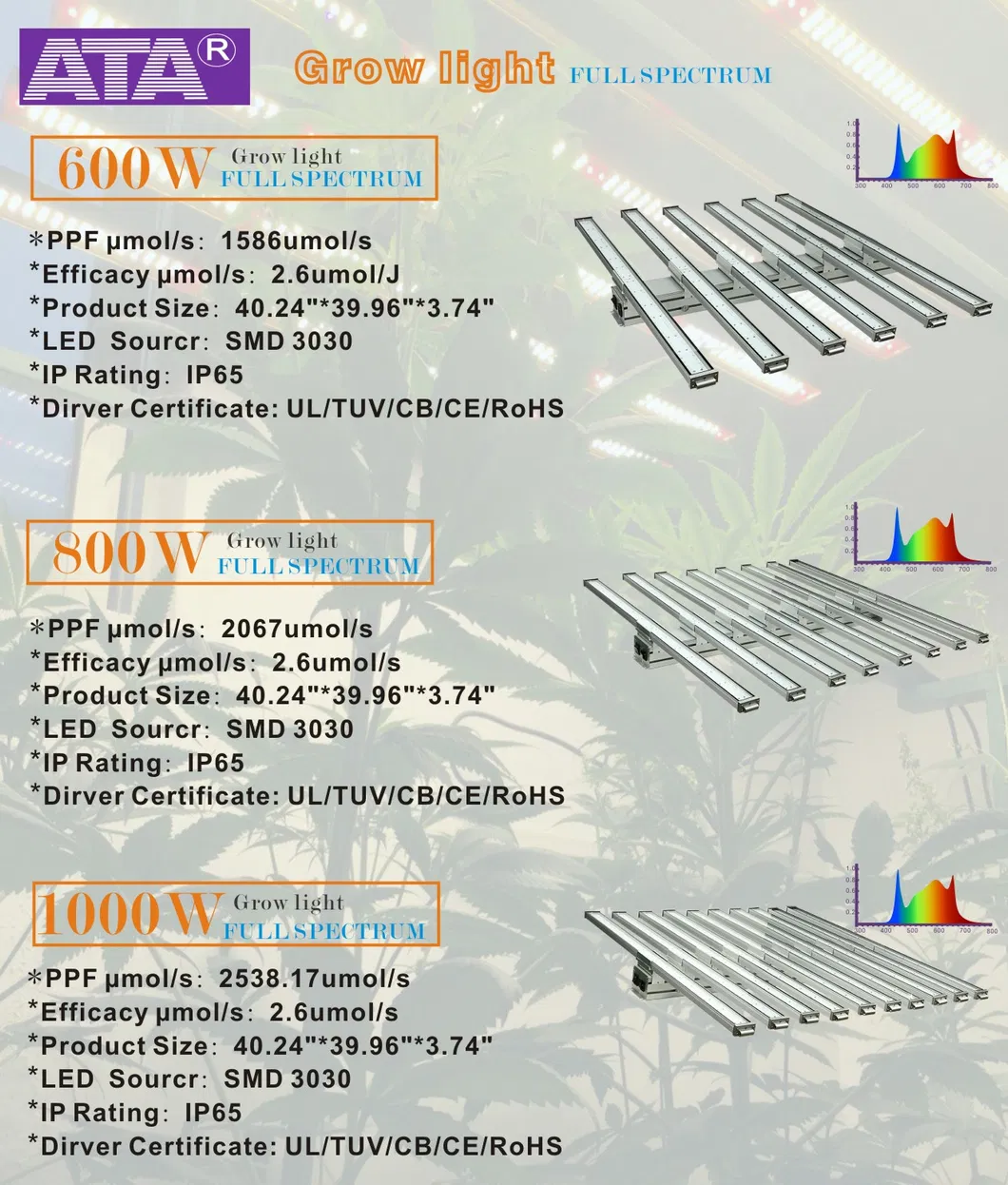

LED Grow Light View 2

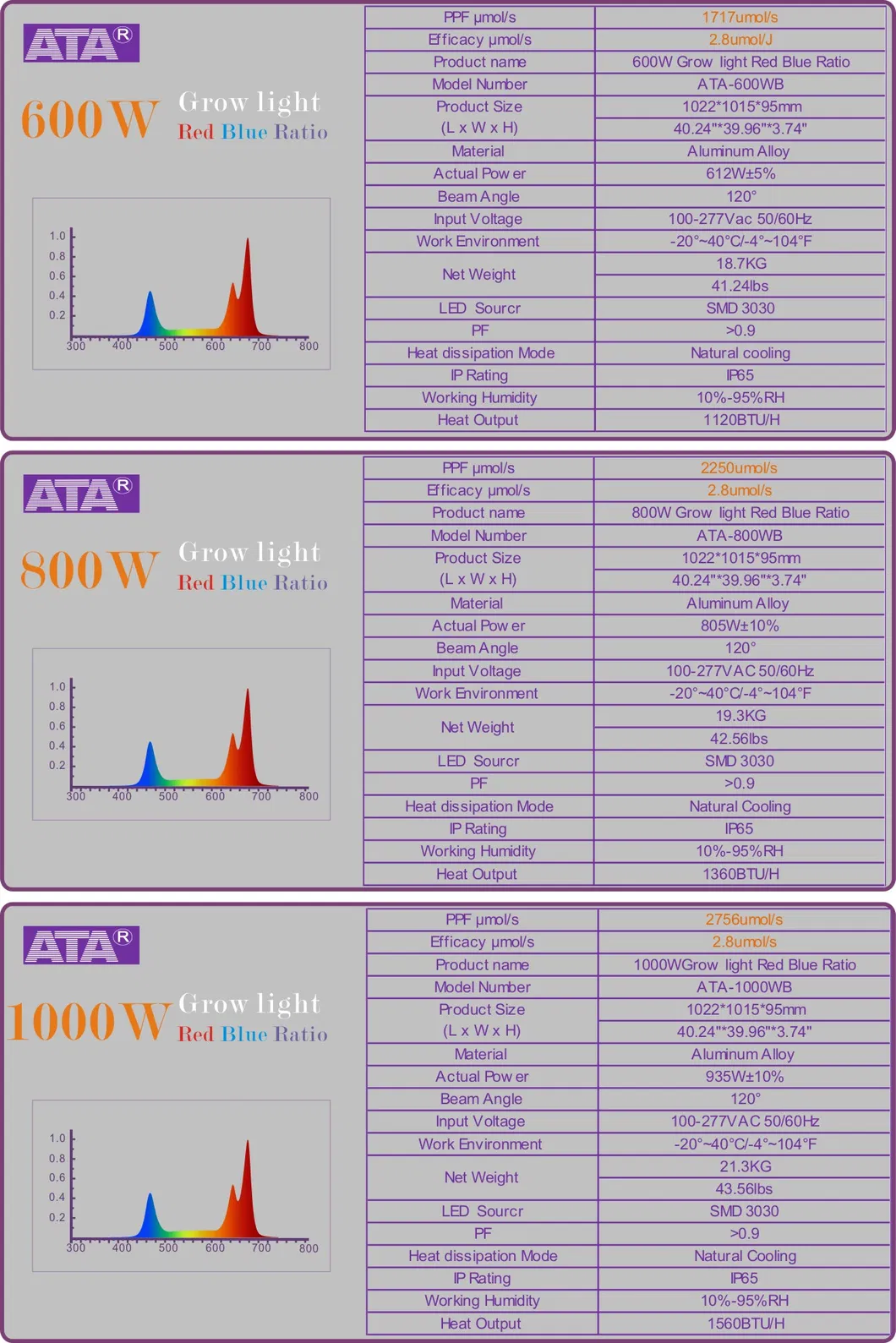

LED Grow Light View 3
LED Grow Light View 4

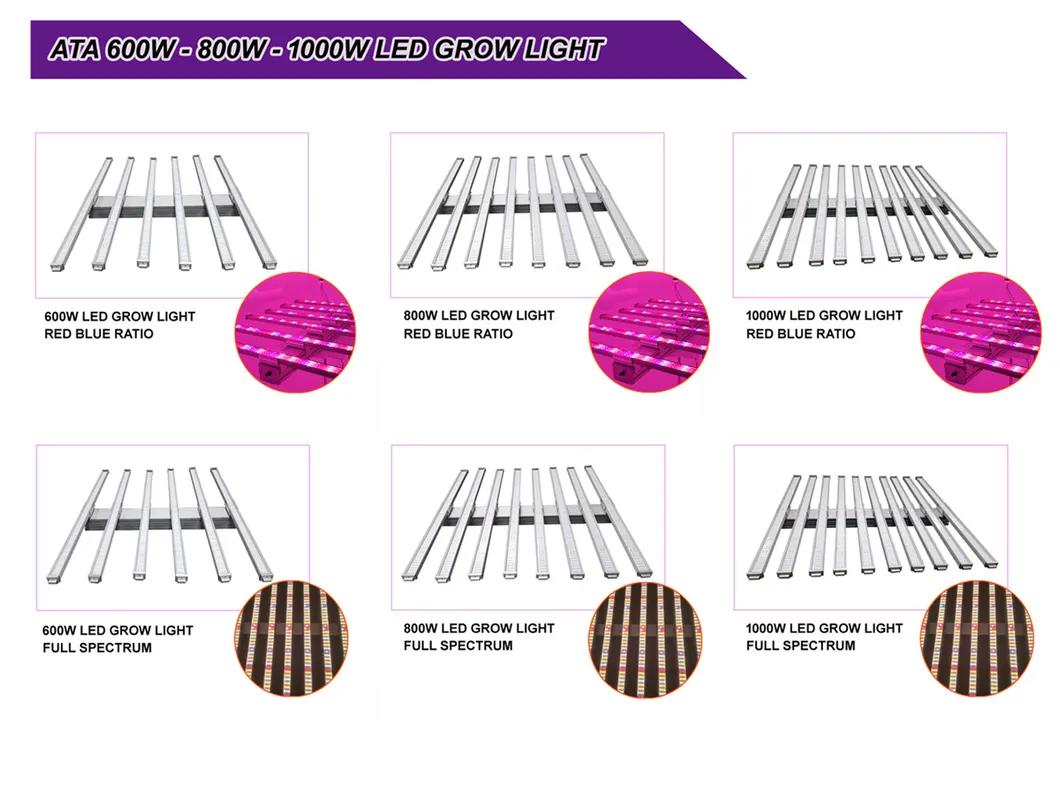

LED Grow Light View 5

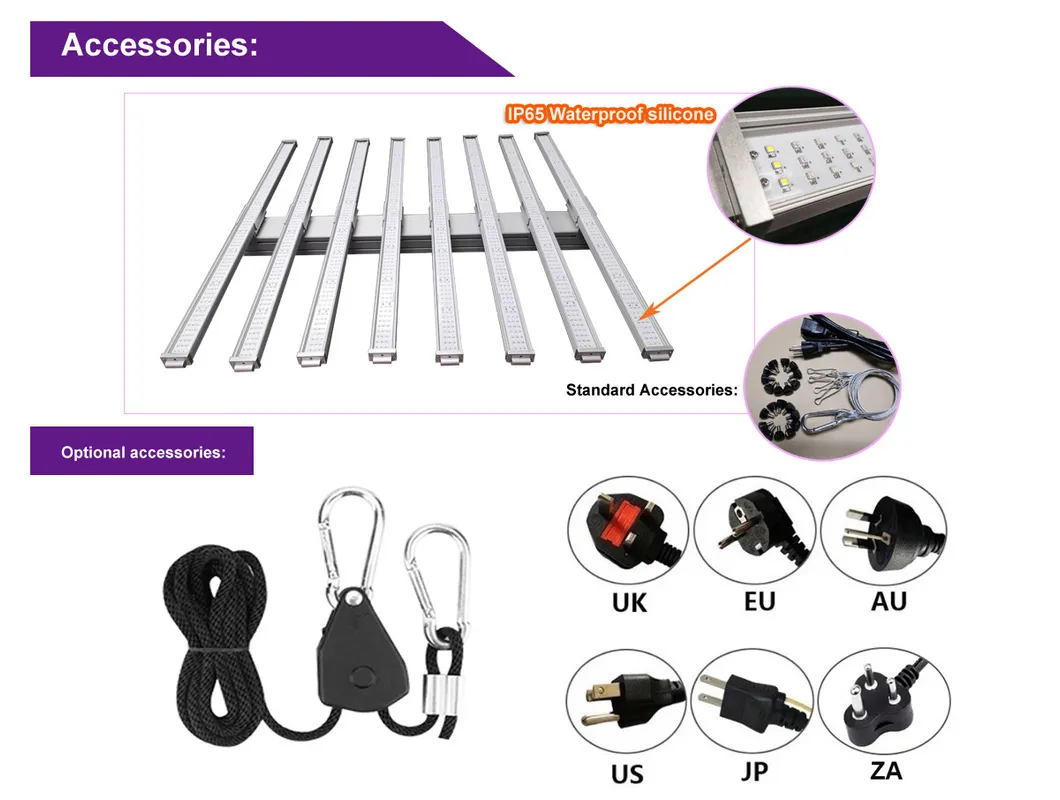

LED Grow Light View 6

Technical Specifications

Feature ATA-M600W ATA-M600W-LENS ATA-M600W-FULL SPECTRUM
Product Size 1022*1015*95mm 1022*1015*95mm 1022*1015*95mm
Material Aluminum Alloy Aluminum Alloy Aluminum Alloy
Power Consumption 545W±5% 545W±5% 545W±5%
LED Type 3W / 3030 LED 3W / 3030 LED 1W / 5730 LED
Beam Angle 120° (without lens) 90° (with lens) 120° (without lens)
Input Voltage 100-277Vac 50/60Hz 100-277Vac 50/60Hz 100-277Vac 50/60Hz
IP Rating IP65 IP65 IP65
PPF 1586umol/s 1586umol/s 1586umol/s
Warranty Three years Three years Two years

Visual Data & Dimensions

PPFD Data:

PPFD Chart

Spectrum Analysis:

Spectrum Chart

Product Dimensions:

Product Dimension

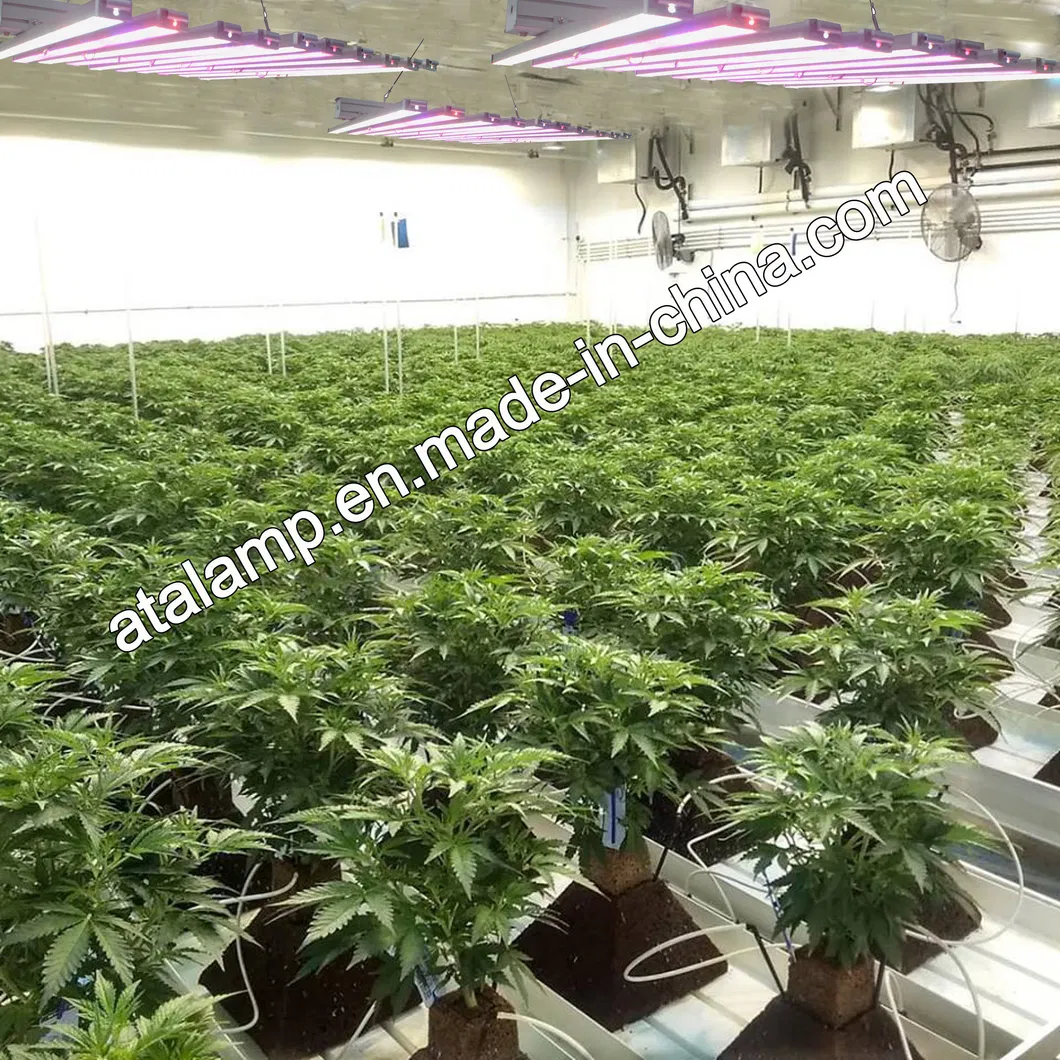

Installation (Suspending):

Installation Method

Application

Suitable for Fruit, Vegetable, Flowers, Special Crops, Leafy greens, Seedlings, propagation, mixed-light supplemental, complete indoor or greenhouse environments, medical plants, pot plants, and pipeline cultivation.

Application Scenarios

User Manual & Quality Control

Safety Guidelines
  • Switch off power before any works.
  • Assembly must not damage conducting paths.
  • Mount on a stable, even, and tilt-fixed background.
  • Installation must be done by an electrical expert.
Quality Assurance
  • Stability TEST: 100% aging test for at least 48 hours.
  • Lighting TEST: 100% tested before packing.
  • Drop TEST: Box protection verified for every light.

Frequently Asked Questions

Q1: What is the effective coverage area for this light? A: This light provides an effective coverage area of approximately 6 square meters when mounted at a 1-meter height.
Q2: How does the LED energy consumption compare to traditional HPS lights? A: The 600W series LED grow light can replace a traditional 400-watt HPS/MH system while consuming only about 108 watts of actual power, making it highly efficient.
Q3: Does the spectrum include IR and UV light? A: Yes, the full spectrum design includes universal Blue, Red, IR, and UV LEDs to promote plant defense mechanisms and essential growth stages.
Q4: What is the IP rating for these grow lights? A: The lights are rated IP65, making them suitable for the humid environments typically found in greenhouses and indoor gardens.
Q5: How is the heat managed in this fixture? A: The light uses an aluminum bar structure designed for natural convection and superior thermal management, ensuring a long lifespan for the LEDs.
Q6: What is the expected light decay over time? A: For the professional modules, the light decay is less than 15% over a period of three years under normal working conditions.
